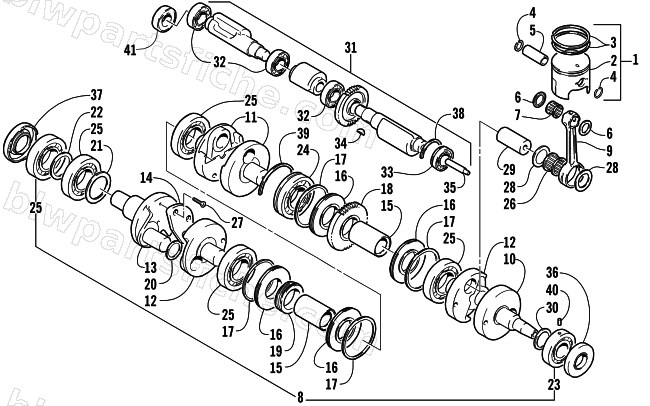

PISTON AND CRANKSHAFT
2002 MOUNTAIN CAT 1000
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3006-044 | PISTON ASSY. 1000 L/C | 1 | $311.95 | |
| 3 | 3005-865 | RING SET, PISTON (800) | 1 | $113.95 | |
| 4 | 3005-304 | CIRCLIP,M22 | 1 | $3.30 | |
| 5 | 3008-509 | PIN, PISTON | 1 | $38.95 | |
| 6 | 3008-500 | WASHER,22MM | 1 | $5.92 | |
| 7 | 3008-503 | R/B 0932-011 | 1 | $39.95 | |
| 8 | 3005-640 | CRANKSHAFT ASSY ( 1000 ) | 1 | $5,335.95 | |
| 9 | 3007-530 | CONNROD | 1 | $251.95 | |
| 10 | 3005-641 | CRANKSHAFT,RH | 1 | $625.95 | |
| 11 | 3005-642 | CRANKSHAFT,MIDDLE NO.1 | 1 | $419.95 | |
| 12 | 3005-643 | CRANKSHAFT,MIDDLE NO.2 | 1 | $476.95 | |
| 14 | 3008-516 | BALANCER, CRANKSHAFT | 1 | $62.95 | |
| 15 | 3005-312 | PIPE, CRANKSHAFT JOINT | 1 | $342.95 | |
| 16 | 3004-167 | RACE, MIDDLE CRANK SEAL | 1 | $102.95 | |
| 18 | 3005-314 | GEAR,BALANCER SHAFT DRIVE | 1 | $224.95 | |
| 19 | 3004-178 | GEAR, DRIVE-OIL PUMP | 1 | $324.95 | |
| 20 | 3008-499 | WASHER, M30X41X4 | 1 | $28.59 | |
| 21 | 3004-204 | WASHER, CRANK BEARING,52MM | 1 | $16.95 | |
| 22 | 3004-148 | SHIM, M45X58 0.5 | 1 | $6.47 | |
| 24 | 3004-151 | BEARING,BALL,M45X90X19 | 1 | $233.95 | |
| 25 | 3004-152 | BEARING,BALL,M45X90X19 | 1 | $193.95 | |
| 26 | 3007-532 | BEARING,CRANK PIN | 1 | $180.95 | |
| 27 | 3007-440 | SCREW | 1 | $2.06 | |
| 28 | 3005-145 | SHIM,30MM | 1 | $7.95 | |
| 29 | 3004-700 | PIN,CRANK | 1 | $85.95 | |
| 30 | 3008-501 | WASHER,35MM | 1 | $3.85 | |
| 31 | 3005-313 | SHAFT ASSY, BALANCER | 1 | $1,388.95 | |
| 32 | 3006-042 | BEARING, 02 1000 L/C (25X52X15) | 1 | $44.95 | |
| 33 | 3006-041 | BEARING, 02 1000 L/C | 1 | $58.95 | |
| 34 | 3004-540 | KEY,WOODRUFF,M4 | 1 | $6.34 | |
| 35 | 3005-316 | SHAFT, WATER PUMP | 1 | $66.95 | |
| 36 | 3008-525 | SEAL, OIL,M30 | 1 | $73.95 | |
| 37 | 3008-526 | SEAL, OIL,M45 | 1 | $86.95 | |
| 38 | 3004-156 | C-RING,M52 | 1 | $3.85 | |
| 39 | 3004-157 | C-RING, 87.6X96X2 | 1 | $22.01 | |
| 40 | 3003-658 | PIN,ALIGNMENT | 1 | $3.16 | |
| 41 | 3004-539 | PLUG,BALANCER (52MM OD) | 1 | $24.77 |
