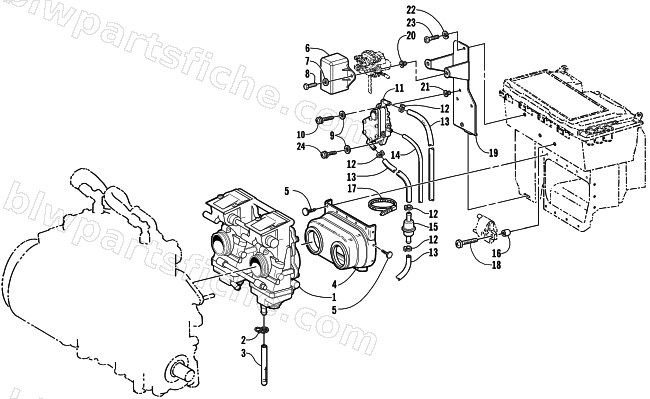

2002 Arctic Cat MOUNTAIN CAT 500 — CARBURETOR AND FUEL PUMP ASSEMBLY
2002 MOUNTAIN CAT 500
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1670-323 | CARB, TM38-B346 | 1 | $1,482.95 | |
| 2 | 0623-652 | CLAMP,HOSE-WIRE(CP10101) | 1 | $1.78 | |
| 3 | 0610-442 | HOSE, DRAIN (1.5") | 1 | $4.40 | |
| 4 | 1670-375 | BOOT, AIR SILENCER | 1 | $114.95 | |
| 5 | 0623-165 | CLIP, X-MAS TREE-5/32 | 1 | $1.50 | |
| 7 | 8050-212 | WASHER,FLAT- 1/4 X .500 X .063 Z&Y | 1 | $0.68 | |
| 8 | 8002-044 | SCREW,CAP-HH 1/4-20 X1.25 G5 Z&Y | 1 | $0.68 | |
| 9 | 0623-594 | WASHER,FLAT-.203 X .562 X .040 | 1 | $0.95 | |
| 10 | 0623-833 | SCREW,MACH-PHPNH 10-32X1.00 Z&Y-SEMS | 1 | $1.95 | |
| 11 | 1670-230 | PUMP,FUEL W/O OIL INLET | 1 | $75.95 | |
| 12 | 0124-045 | CLAMP,HOSE - .402/.449 DIA (SNP04) | 1 | $2.61 | |
| 13 | 0610-015 | HOSE,GAS 1/4 X100' | 1 | $231.59 | |
| 13 | 0610-016 | HOSE,GAS 1/4 X25' | 1 | $117.95 | |
| 14 | 0610-007 | HOSE, IMPULSE 3/16 25' | 1 | $102.95 | |
| 15 | 2670-346 | FILTER,FUEL-INLINE-5/16 | 1 | $24.77 | |
| 16 | 0107-630 | SPACER,FUEL PUMP | 1 | $11.95 | |
| 17 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 18 | 0623-835 | SCREW,MACH-PHPNH #10-32 X1.75 W/SEMS LW | 1 | $0.55 | |
| 19 | 0770-488 | PLATE, MTG,FAB(SERVO) | 1 | $34.95 | |
| 20 | 0623-582 | INSERT, A L SERIES (1/4-20) | 1 | $3.16 | |
| 21 | 0623-779 | INSERT,ALS4-1032-130 | 1 | $3.16 | |
| 22 | 8051-212 | WASHER,SPR LOCK-1/4 .252X.487X.062 Z&Y | 1 | $0.12 | |
| 24 | 0623-888 | SCREW,MACH-PHPNH 10-32X.75 Z&Y-SEMS | 1 | $0.54 |
