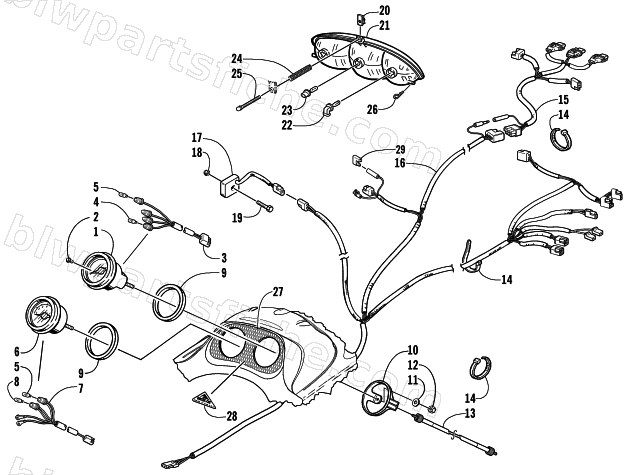

HEADLIGHT, INSTRUMENTS, AND WIRING ASSEMBLIES
2002 MOUNTAIN CAT 500
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0620-238 | SPEEDOMETER, 100MPH-W/O AC LOGO | 1 | $237.95 | |
| 2 | 0620-073 | KNOB,TRIPMETER | 1 | $15.11 | |
| 3 | 0620-151 | HARNESS,SPEEDOMETER BULB | 1 | $117.95 | |
| 4 | 0620-149 | BULB,T-10 WEDGE BASE-12V 1.7W | 1 | $4.95 | |
| 5 | 0230-020 | BULB, T-10 WEDGE BASE-12 V 3.4W | 1 | $3.16 | |
| 6 | 0620-253 | TACHOMETER,ELEC-12P W/ SENSOR LITE | 1 | $409.95 | |
| 7 | 0620-254 | HARNESS,TACH-W/ SENSOR LITE | 1 | $136.95 | |
| 9 | 0620-135 | RING, RUBBER CUSHION-TACH/SPEEDO | 1 | $3.57 | |
| 10 | 0620-134 | BACKCLAMP, TACH/SPEEDO | 1 | $17.95 | |
| 11 | 8050-212 | WASHER,FLAT- 1/4 X .500 X .063 Z&Y | 1 | $0.68 | |
| 12 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 13 | 0620-269 | CABLE, SPEEDOMETER-96" | 1 | $68.95 | |
| 14 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 15 | 0686-699 | HARNESS,HOOD-TACH/SENSOR | 1 | $126.95 | |
| 16 | 0686-748 | HARNESS,MAIN-500 CARB W/TEMP SWITCH | 1 | $228.95 | |
| 17 | 0630-001 | REGULATOR,VOLTAGE | 1 | $66.95 | |
| 18 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 19 | 8002-044 | SCREW,CAP-HH 1/4-20 X1.25 G5 Z&Y | 1 | $0.68 | |
| 20 | 0623-757 | NUT,U 1/4-20 (SHORT .50) | 1 | $1.78 | |
| 21 | 0609-250 | REFLECTOR/LENS,HEADLIGHT(0609-249) | 1 | $183.95 | |
| 22 | 0609-251 | BULB, (GE 894)HEADLIGHT-HIGH BEAM | 1 | $29.95 | |
| 23 | 0609-252 | BULB, (GE 885)HEADLIGHT-LOW BEAM | 1 | $31.95 | |
| 24 | 0623-466 | SPRING,ADJUSTMENT-HEADLIGHT | 1 | $5.78 | |
| 25 | 0623-467 | SCREW,THUMB-1/4X20X3.5 | 1 | $15.11 | |
| 26 | 0623-847 | CLIP, HAIRPIN | 1 | $0.95 | |
| 27 | 4611-356 | DECAL, HOOD-CONSOLE | 1 | $42.95 | |
| 29 | 0630-152 | DIODE,SENSOR LIGHT-STYLE #21 | 1 | $17.95 |
