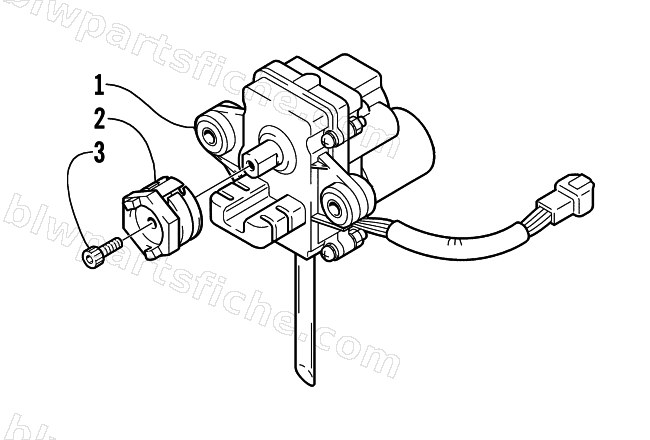

2002 Arctic Cat MOUNTAIN CAT 500 — SERVOMOTOR ASSEMBLY
2002 MOUNTAIN CAT 500
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3007-702 | MOTOR ASSY, EXHAUST VALVE | 1 | $726.95 | |
| 2 | 3005-661 | PULLEY,CONTROLLER | 1 | $70.95 | |
| 3 | 0693-368 | BOLT, GOV SPRING HOOK-M5X12 | 1 | $3.16 |
