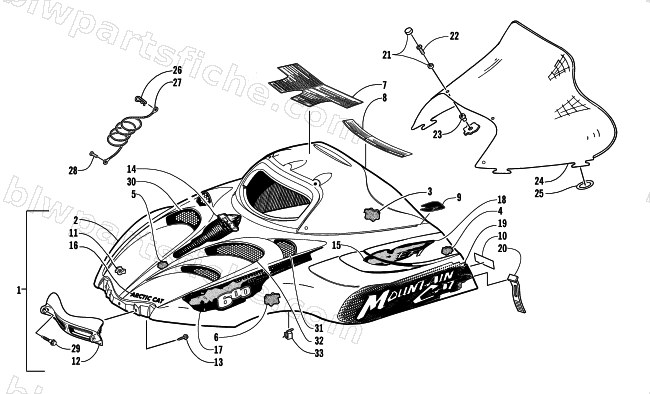

2002 Arctic Cat MOUNTAIN CAT 600 EFI () — HOOD AND WINDSHIELD ASSEMBLY
2002 MOUNTAIN CAT 600 EFI ()
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1718-049 | HOOD, W/DECALS-MC 600 EFI/LE-BLK/GRN | 1 | $1,264.95 | |
| 1 | 1718-113 | HOOD, W/DECALS-MC 600 EFI LE-BLK/ORN | 1 | $1,264.95 | |
| 2 | 1718-048 | HOOD,W/O DECALS-MC 5/6-BK/GN | 1 | $1,201.95 | |
| 2 | 1718-114 | HOOD, W/O DECALS-MC 600 EFI LE-BLK/ORN | 1 | $1,153.95 | |
| 4 | 0617-322 | FOAM,HOOD-UPPER RH | 1 | $42.95 | |
| 4 | 0617-323 | FOAM,HOOD-UPPER LH | 1 | $53.95 | |
| 5 | 0617-328 | FOAM,HOOD-MIDDLE | 1 | $26.95 | |
| 6 | 0617-326 | FOAM,HOOD-REAR RH | 1 | $17.95 | |
| 6 | 0617-327 | FOAM,HOOD-REAR LH | 1 | $29.95 | |
| 7 | 3611-485 | DECAL, WARNING-GENL & BRAKE-ENG & FRNCH | 1 | $35.95 | |
| 8 | 3611-970 | DECAL, CAUTION-ENG/BTRY/FUEL-ENG &FRCH | 1 | $41.95 | |
| 9 | 4611-334 | DECAL,HOOD PAD-ACT-RH BLK | 1 | $8.95 | |
| 9 | 4611-335 | DECAL,HOOD PAD-ACT-LH BLK | 1 | $8.95 | |
| 10 | 3611-509 | DECAL, WARNING-SEATING CAPACITY | 1 | $72.95 | |
| 11 | 1606-938 | FOIL,HOOD-RH | 1 | $54.95 | |
| 11 | 1606-939 | FOIL, HOOD-LH | 1 | $75.95 | |
| 12 | 1606-720 | HINGE, HOOD | 1 | $45.95 | |
| 12 | 2606-454 | HINGE, HOOD-GRAY-INJ MOLD | 1 | $73.95 | |
| 13 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 14 | 4611-064 | DECAL, HOOD-CTR-"600"-MC | 1 | $41.95 | |
| 14 | 4611-423 | DECAL, HOOD-CTR-"600"-ORN | 1 | $39.95 | |
| 15 | 4611-068 | DECAL, HOOD-FRT RH VENT-MC | 1 | $20.95 | |
| 15 | 4611-069 | DECAL, HOOD-FRT LH VENT-MC | 1 | $18.95 | |
| 16 | 4611-062 | DECAL,HOOD-NOSE-"ARCTIC CAT"-MC | 1 | $16.49 | |
| 17 | 4611-054 | DECAL, HOOD-UPR RH-"600"-MC | 1 | $89.95 | |
| 17 | 4611-055 | DECAL,HOOD-UPPER LH"600"(MC) | 1 | $89.95 | |
| 17 | 4611-428 | DECAL, HOOD-UPR RH-"600"-ORN | 1 | $36.95 | |
| 17 | 4611-427 | DECAL, HOOD-UPR LH-"600"-ORN | 1 | $36.95 | |
| 18 | 4611-116 | DECAL, HOOD RR RH VENT-"EFI" | 1 | $40.95 | |
| 18 | 4611-117 | DECAL, HOOD RR LH VENT-"EFI" | 1 | $40.95 | |
| 18 | 4611-430 | DECAL, HOOD RR RH VENT-"EFI"-ORN | 1 | $64.95 | |
| 18 | 4611-429 | DECAL, HOOD RR LH VENT-"EFI"-ORN | 1 | $63.95 | |
| 19 | 4611-072 | DECAL, HOOD-LWR RH | 1 | $97.95 | |
| 19 | 4611-073 | DECAL, HOOD,LWR LH | 1 | $97.95 | |
| 19 | 4611-426 | DECAL, HOOD-LWR RH-ORN | 1 | $37.95 | |
| 19 | 4611-425 | DECAL, HOOD-LWR LH-ORN | 1 | $33.95 | |
| 20 | 1606-067 | STRAP, HOLDDOWN- HOOD | 1 | $12.35 | |
| 21 | 0124-054 | SNAP CAP W/WASHER | 1 | $1.23 | |
| 22 | 0623-902 | SCREW, MACH-PHTRH-10-32X5/8-ZY | 1 | $0.95 | |
| 23 | 0623-845 | NUT, EXP,10-32 | 1 | $2.47 | |
| 24 | 2606-471 | WINDSHIELD, FORMED | 1 | $160.95 | |
| 25 | 0616-032 | O-RING-WINDSHIELD (1 I.D.) | 1 | $1.78 | |
| 27 | 1606-158 | CABLE HOOD 35.0" | 1 | $15.11 | |
| 29 | 0623-690 | SCREW,HDHS-1/4-20X1.240 Z&Y | 1 | $24.77 | |
| 30 | 2606-322 | SCREEN, VENT HOOD-RH-CTR/SLV | 1 | $69.95 | |
| 31 | 2606-323 | SCREEN, VENT HOOD-LH-UPPER/SLV | 1 | $24.77 | |
| 32 | 2606-325 | SCREEN, VENT HOOD-LH-CTR/SLV | 1 | $64.95 | |
| 33 | 0123-394 | CLIP CABLE | 1 | $1.37 |
