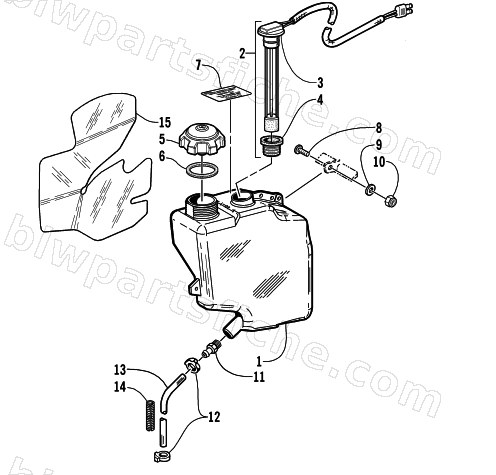

OIL TANK ASSEMBLY
2002 PANTERA 550
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1670-026 | TANK,OIL(2000 ZR) | 1 | $122.95 | |
| 2 | 0609-503 | SENSOR,OIL LEVEL-ROTARY W/SEAL | 1 | $75.95 | |
| 3 | 0609-518 | SWITCH, OIL-W/HARNESS- ASSY | 1 | $102.95 | |
| 4 | 0609-237 | SEAL,GROMMET-OIL SENSOR (REF 0609-224) | 1 | $3.44 | |
| 5 | 1670-365 | CAP, VENTED- OIL IMPRINTED | 1 | $33.95 | |
| 6 | 0109-733 | SEAL,GAS CAP | 1 | $3.57 | |
| 7 | 1611-564 | DECAL,OIL TANK | 1 | $13.73 | |
| 8 | 8017-580 | SCREW,MACH-TSTRH 1/4-20 X 3/4 GR2 Z&Y | 1 | $2.06 | |
| 9 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 10 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 11 | 0670-733 | FITTING,STRAIGHT-5/16 X 3/8 NPT | 1 | $5.65 | |
| 12 | 0124-045 | CLAMP,HOSE - .402/.449 DIA (SNP04) | 1 | $2.61 | |
| 13 | 0610-015 | HOSE,GAS 1/4 X100' | 1 | $231.59 | |
| 13 | 0610-016 | HOSE,GAS 1/4 X25' | 1 | $117.95 | |
| 14 | 0716-507 | LOOM,HI-TEMP (26" LONG) | 1 | $3.44 | |
| 15 | 1670-234 | FOIL, PROTECTIVE-OIL TANK | 1 | $71.95 | |
| 16 | 0670-289 | TAPE, TEFLON-ROLL | 1 | $6.34 |
