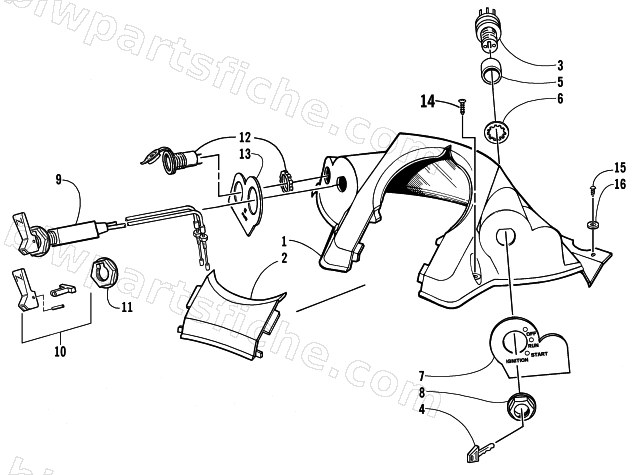

CONSOLE AND SWITCH ASSEMBLY
2002 PANTERA 550 ()
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2606-409 | CONSOLE, IGN-CARB-BLK CHERRY | 1 | $39.95 | |
| 2 | 2606-410 | DOOR, CONSOLE- BLK CHERRY | 1 | $36.95 | |
| 3 | 0609-449 | SWITCH,IGN-MULTI KEY | 1 | $56.95 | |
| 6 | 0123-899 | WASHER,IGNITION | 1 | $0.95 | |
| 7 | 4611-502 | DECAL, CONSOLE SWITCH-RH | 1 | $89.95 | |
| 8 | 0609-113 | NUT,RETAINING 13/16-20 BLACK PLASTIC | 1 | $1.50 | |
| 9 | 0687-007 | CABLE,CHOKE-DUAL | 1 | $84.95 | |
| 10 | 0636-062 | LEVER KIT,CHOKE | 1 | $12.35 | |
| 11 | 0623-054 | NUT,PLASTIC-CHOKE | 1 | $4.40 | |
| 12 | 1639-371 | KIT, OUTLET 12V ACCESSORY | 1 | $47.95 | |
| 13 | 4611-503 | DECAL,CONSOLE-LH | 1 | $90.95 | |
| 14 | 0623-219 | SCREW,TAPPING 10-24X3/4 TYPE F,TYPE 1 CR | 1 | $0.68 | |
| 15 | 0623-378 | SCREW,SELF TAP-PHTRH #8-32 X .50 AB Z&Y | 1 | $0.26 | |
| 16 | 8050-157 | WASHER,FLAT- #10 X .500 X .049 Z&Y | 1 | $1.23 |
