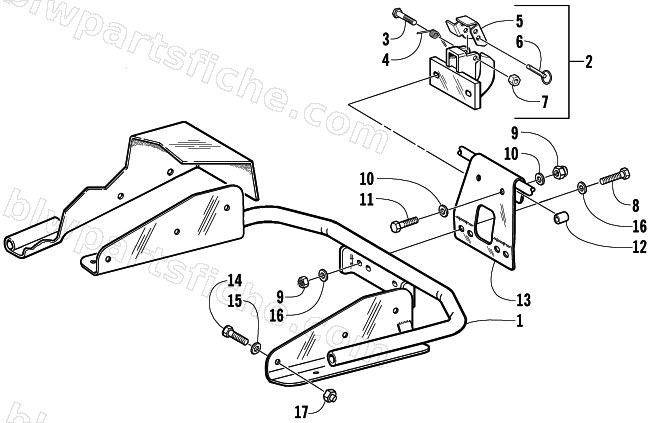

HITCH ASSEMBLY
2002 PANTERA 600 EFI ESR ()
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1706-093 | TUBE, 1" TRNG DROP HITCH - PTD | 1 | $220.95 | |
| 2 | 0706-727 | HITCH,PINTAL-ASSY-SWEDISH | 1 | $109.95 | |
| 3 | 8002-046 | SCREW,CAP-HH 1/4-20 X1.75 G5 Z&Y | 1 | $0.95 | |
| 4 | 0623-335 | SPRING,TRAILER HITCH LATCH | 1 | $15.11 | |
| 5 | 2706-229 | LATCH,HITCH-PTD BLK | 1 | $15.11 | |
| 6 | 0623-213 | PIN,HITCH-COTTERLESS-SWEDISH | 1 | $20.63 | |
| 7 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 8 | 8002-134 | SCREW,CAP-HH 5/16-18 X1.25 G5 Z&Y | 1 | $0.65 | |
| 9 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 10 | 8050-247 | WASHER,FLAT- 5/16 X .688 X .065 Z&Y | 1 | $0.68 | |
| 11 | 8002-135 | SCREW,CAP-HH 5/16-18 X1.50 G5 Z&Y | 1 | $0.65 | |
| 12 | 0605-066 | AXLE,DRAG-LINK | 1 | $6.83 | |
| 13 | 2706-230 | BRKT,MTG-HITCH/RACK-PTD BLK | 1 | $26.95 | |
| 14 | 8002-039 | SCREW,CAP-HH 1/4-20 X.625 G5 Z&Y | 1 | $0.40 | |
| 15 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 16 | 8050-252 | WASHER,FLAT- 5/16 X .875 X .063 Z&Y | 1 | $0.68 |
