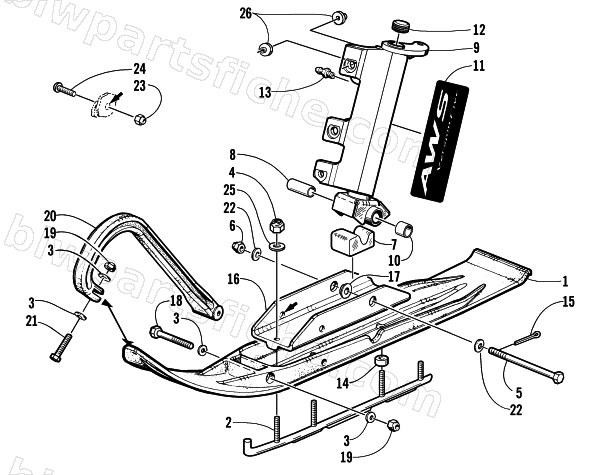

SKI AND SPINDLE ASSEMBLY
2002 PANTERA 600 EFI ESR ()
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0703-958 | SKI, PLASTIC,MACH BLK(W/SKAG GROOVE) | 1 | $234.95 | |
| 1 | 0703-492 | SKI,PLASTIC-MACH(WIDE/DEEP) | 1 | $318.95 | |
| 2 | 1703-003 | SKAG, LONG-4'CRB/HDWELD,PTD BLK | 1 | $65.95 | |
| 3 | 8050-247 | WASHER,FLAT- 5/16 X .688 X .065 Z&Y | 1 | $0.68 | |
| 4 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 5 | 0623-552 | SCREW,CAP-HH 7/16-20 X 4.50 W/HOLE | 1 | $12.35 | |
| 6 | 0123-296 | NUT,FLEX-FULL 7/16-20 | 1 | $6.47 | |
| 7 | 0603-036 | DAMPER, SKI RUBBER | 1 | $17.87 | |
| 8 | 2603-548 | AXLE,SPINDLE | 1 | $19.25 | |
| 9 | 0703-898 | SPINDLE FAB-RH MILLED -PLATINUM | 1 | $348.95 | |
| 9 | 0703-899 | SPINDLE FAB-LH MILLED- PLATINUM | 1 | $357.95 | |
| 10 | 0603-158 | BEARING,GARLOCK 12DU12 | 1 | $8.21 | |
| 11 | 4611-348 | DECAL, SPINDLE-RH-PANTERA | 1 | $76.95 | |
| 11 | 4611-349 | DECAL, SPINDLE-LH-PANTERA | 1 | $86.95 | |
| 12 | 0623-831 | CAP, SPINDLE (RDR-10-1420) | 1 | $1.50 | |
| 13 | 0623-010 | ZERK, GREASE (LONG) | 1 | $2.47 | |
| 14 | 0603-616 | SPACER,SADDLE | 1 | $20.63 | |
| 15 | 0123-458 | PIN,COTTER 1/8X1 | 1 | $0.40 | |
| 16 | 0703-853 | SADDLE, SKI W/INSERTS-PLATINUM | 1 | $87.95 | |
| 16 | 0703-269 | SADDLE,SKI-ASSY | 1 | $78.95 | |
| 17 | 0603-621 | INSERT-SKI SADDLE | 1 | $4.95 | |
| 18 | 8002-143 | SCREW,CAP-HH 5/16-18 X3.50 G5 Z&Y | 1 | $1.64 | |
| 19 | 8041-426 | NUT,HEX THIN LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 20 | 0603-624 | HANDLE,PLASTIC-BLACK | 1 | $32.95 | |
| 21 | 8002-135 | SCREW,CAP-HH 5/16-18 X1.50 G5 Z&Y | 1 | $0.65 | |
| 22 | 0623-728 | WSHR, FLAT-HARD(.469 X 1.125 X .100 THK) | 1 | $3.02 | |
| 23 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 24 | 8017-581 | SCREW,MACH-TSTRH 1/4-20 X 7/8 GR2 Z&Y | 1 | $5.45 | |
| 25 | 8050-277 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.26 | |
| 26 | 0603-647 | INSERT,ALUM.-SPINDLE | 1 | $5.78 |
