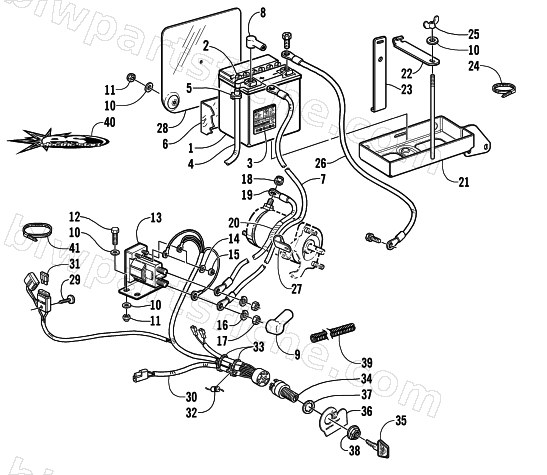

BATTERY, SOLENOID, AND CABLES
2002 PANTHER 570 (R)
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0745-059 | BATTERY,EL.START-12V W/FOIL(0645-197) | 1 | $99.95 | |
| 2 | 0645-588 | CAP,BATTERY(GREEN FOR 0645-197) | 1 | $1.78 | |
| 3 | 0645-151 | LABEL, WARNING-BATTERY | 1 | $10.97 | |
| 4 | 0645-263 | HOSE, BATTERY VENT-550MM | 1 | $3.44 | |
| 5 | 0645-152 | CLAMP, HOSE-BATTERY VENT | 1 | $2.47 | |
| 6 | 0645-082 | WRAP,BATTERY HEAT-6 X 11 | 1 | $6.34 | |
| 7 | 0645-374 | CABLE, BTRY-SOL 16.5" | 1 | $42.95 | |
| 8 | 0645-019 | BOOT,TERMINAL-BATTERY | 1 | $4.40 | |
| 9 | 0645-327 | BOOT,TERMINAL-SOLENOID | 1 | $1.64 | |
| 10 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 11 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 12 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 13 | 0645-196 | SOLENOID,ELECTRIC START | 1 | $69.95 | |
| 14 | 8051-152 | WASHER,SPR LOCK-#10 .193X.334X.047 Z&Y | 1 | $0.15 | |
| 15 | 8042-272 | NUT,10-32 HEX-REG-GR2 Z&Y | 1 | $0.15 | |
| 16 | 8051-242 | WASHER,SPR LOCK-5/16 .314X.583X.078 Z&Y | 1 | $1.64 | |
| 17 | 8043-452 | NUT,5/16-24 HEX LOCK-MET TOP LOC GRA Z&Y | 1 | $0.95 | |
| 18 | 0623-122 | NUT ,FLEX LOCK-THIN 1/4-20 | 1 | $1.50 | |
| 19 | 0645-373 | CABLE, SOL-STARTER 18" | 1 | $29.95 | |
| 20 | 0645-181 | TUBE,HEAT PROTECTION-4 LONG | 1 | $2.47 | |
| 21 | 0745-166 | TRAY,LGE BATTERY-785 L/C-PTD BLK | 1 | $47.95 | |
| 22 | 0645-243 | STRAP, BATTERY HOLDOWN-TOP | 1 | $16.49 | |
| 23 | 0645-311 | STRAP,BATTERY HOLDOWN-SIDE | 1 | $32.95 | |
| 24 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 25 | 0623-325 | NUT,WING - 1/4-20 NYLON SL | 1 | $2.06 | |
| 26 | 0645-136 | CABLE,BATTERY TO GROUND-18.00 | 1 | $30.95 | |
| 27 | 3008-040 | CLAMP, HEAT SENSOR,M12 | 1 | $1.92 | |
| 28 | 0745-139 | SHIELD,HEAT-BATTERY ASS'Y | 1 | $45.95 | |
| 29 | 0623-589 | CLIP,RETAINING-.191X.700 | 1 | $2.75 | |
| 30 | 0686-697 | HARNESS, ES-800 TWIN KIT - MK ISOLATED | 1 | $114.95 | |
| 31 | 0630-100 | FUSE, 7 1/2 AMP ATO/ATC | 1 | $5.95 | |
| 32 | 0630-002 | DIODE,CHARGING | 1 | $17.95 | |
| 33 | 0123-811 | TIE,CABLE-4 INCH PLT1M | 1 | $0.26 | |
| 34 | 0609-449 | SWITCH,IGN-MULTI KEY | 1 | $56.95 | |
| 37 | 0123-899 | WASHER,IGNITION | 1 | $0.95 | |
| 38 | 0609-113 | NUT,RETAINING 13/16-20 BLACK PLASTIC | 1 | $1.50 | |
| 39 | 0716-391 | CONDUIT, FLEXIBLE-.500 DIA 24" C/T/L | 1 | $3.99 | |
| 40 | 3611-644 | DECAL, "ES" | 1 | $26.95 | |
| 41 | 0623-144 | TIE,CABLE-17.5 LONG | 1 | $0.54 |
