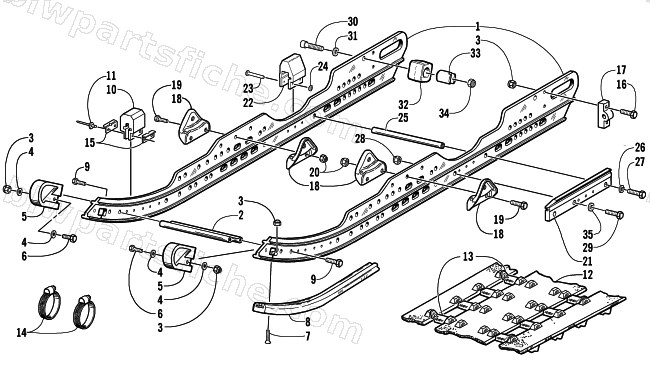

2002 Arctic Cat THUNDERCAT — SLIDE RAIL AND TRACK ASSEMBLY
2002 THUNDERCAT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0704-736 | RAIL, 121"-FORMED-STAMPED-PTD BLK (-050) | 1 | $187.95 | |
| 2 | 1604-109 | SADDLE,FRT ARM SHOCK RES.-MACH. | 1 | $120.95 | |
| 3 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 4 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 5 | 1604-137 | NOSEPIECE,RAIL-BLUNT | 1 | $6.75 | |
| 6 | 8002-044 | SCREW,CAP-HH 1/4-20 X1.25 G5 Z&Y | 1 | $0.68 | |
| 7 | 0123-869 | SCRW,MACH,FH-1/4-20 X 1 1/4 | 1 | $0.95 | |
| 8 | 2604-257 | WEARSTRIP,SLIDE RAIL-BLK | 1 | $33.95 | |
| 9 | 8002-134 | SCREW,CAP-HH 5/16-18 X1.25 G5 Z&Y | 1 | $0.65 | |
| 10 | 0604-918 | PAD,SHOCK-RUBBER | 1 | $13.73 | |
| 11 | 8060-633 | RIVET,BLIND-DH AA614 BLK | 1 | $1.09 | |
| 12 | 2602-398 | TRACK,HACKSAW (NQ)-15"X121"X1" | 1 | $914.95 | |
| 13 | 2602-383 | CLIP,GUIDE | 1 | $4.26 | |
| 14 | 0214-025 | CLAMP,HOSE #32 | 1 | $4.40 | |
| 15 | 0604-967 | BRACKET,RETAINING-SHOCK PAD | 1 | $3.57 | |
| 16 | 8002-042 | SCREW,CAP-HH 1/4-20 X1.00 G5 Z&Y | 1 | $0.40 | |
| 17 | 0704-352 | ADJUSTER,TRACK-MACH. | 1 | $24.77 | |
| 18 | 2604-159 | BRACKET, MTG - FRONT ARM-PTD BLK | 1 | $30.95 | |
| 19 | 8002-131 | SCREW,CAP-HH 5/16-18 X.875 G5 Z&Y | 1 | $0.95 | |
| 20 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 21 | 0704-550 | BRACE, RAIL-RH (BLACK, 2001 TC) | 1 | $40.95 | |
| 21 | 0704-551 | BRACE, RAIL-LH (BLACK, 2001 TC) | 1 | $39.95 | |
| 22 | 1604-820 | PAD, SHOCK RUBBER (ZL "SS") | 1 | $17.87 | |
| 23 | 0623-772 | RIVET,SOLID-3/16X1.5 | 1 | $0.95 | |
| 24 | 0623-773 | PUSHNUT - 3/16 DIA STUD | 1 | $1.09 | |
| 25 | 0604-930 | AXLE,XBRC (ALUM) -625X8.750 (3/8-16) | 1 | $37.95 | |
| 26 | 8051-277 | WASHER,SPR LOCK-3/8 .377X.688X.115 Z&Y | 1 | $1.50 | |
| 27 | 8002-225 | SCREW,CAP-HH 3/8-16 X1.50 G5 Z&Y | 1 | $0.95 | |
| 28 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 29 | 8002-223 | SCREW,CAP-HH 3/8-16 X1.125 G5 Z&Y | 1 | $8.21 | |
| 30 | 8005-676 | SCREW, CAP-HSH 3/8-16X1.75 Z&Y | 1 | $1.95 | |
| 31 | 0623-044 | WSHR,FLAT HARD .375 X.875 | 1 | $4.68 | |
| 32 | 2604-545 | BLOCK, REAR ARM COUPLER | 1 | $13.73 | |
| 33 | 2604-046 | BUSHING, REAR ARM COUPLER | 1 | $29.95 | |
| 34 | 8041-486 | NUT,HEX THIN LOCK-NYL 3/8-16 Z&Y | 1 | $0.40 | |
| 35 | 8050-277 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.26 |
