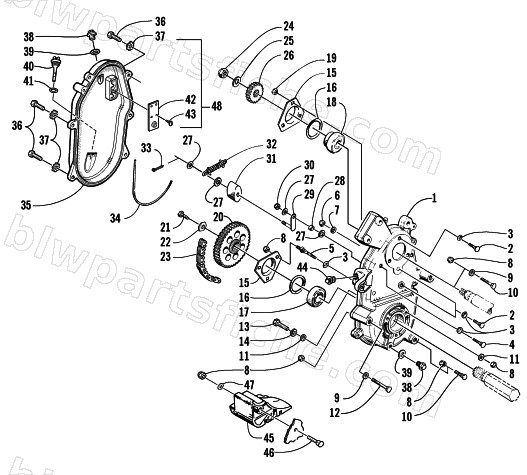

DRIVE/DROPCASE ASSEMBLY
2002 Z 370
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0702-415 | DROPCASE, W/STUDS-PTD | 1 | $217.95 | |
| 2 | 0123-523 | BOLT,RIB NECK-RDH 5/16-18X.625 Z&Y | 1 | $3.02 | |
| 3 | 0607-025 | O-RING, STUD | 1 | $1.50 | |
| 4 | 0623-117 | BOLT,RIB NECK-RDH 1/4-20X1.00 Z&Y | 1 | $20.63 | |
| 5 | 0623-317 | STUD,5/16-18 RIBBED-DROPCASE | 1 | $20.63 | |
| 6 | 8042-426 | NUT,5/16-18 HEX-REG-GR5 Z&Y | 1 | $0.54 | |
| 7 | 0623-094 | WASHER, FLAT - 5/16 ID | 1 | $0.40 | |
| 8 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 9 | 8050-252 | WASHER,FLAT- 5/16 X .875 X .063 Z&Y | 1 | $0.68 | |
| 10 | 8011-139 | BOLT,CRG 5/16-18X2.50 GR1 Z&Y | 1 | $1.23 | |
| 11 | 8050-247 | WASHER,FLAT- 5/16 X .688 X .065 Z&Y | 1 | $0.68 | |
| 12 | 8011-143 | BOLT,CRG 5/16-18X3.50 GR1 Z&Y | 1 | $1.23 | |
| 13 | 8002-136 | SCREW,CAP-HH 5/16-18 X1.75 G5 Z&Y | 1 | $0.95 | |
| 14 | 8051-247 | WASHER,SPR LOCK-5/16 .314X.593X.097 Z&Y | 1 | $0.40 | |
| 15 | 0602-198 | PLATE,FLANGE-BEARING (TRIANGLE) | 1 | $12.35 | |
| 16 | 1670-237 | SEAL, O-RING(2-033) | 1 | $0.95 | |
| 17 | 1702-179 | KIT,REPLACEMENT BEARING-1" | 1 | $79.95 | |
| 18 | 1702-180 | KIT,REPLACEMENT BEARING-7/8" | 1 | $63.95 | |
| 19 | 8041-426 | NUT,HEX THIN LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 20 | 0602-938 | SPROCKET,44T-3/8 X .520 | 1 | $86.95 | |
| 21 | 8012-222 | SCREW, CAP - HHNLP 3/8-16X1.0 G5 Z&Y | 1 | $1.95 | |
| 23 | 0107-372 | CHAIN,72 PITCH-SILENT | 1 | $98.95 | |
| 24 | 0123-310 | NUT,FLEXLOCK 1/2-20,THIN | 1 | $4.68 | |
| 25 | 0623-231 | WASHER,SPRING-BELLEVILLE | 1 | $4.26 | |
| 26 | 0107-341 | SPROCKET-18T | 1 | $167.95 | |
| 27 | 8050-212 | WASHER,FLAT- 1/4 X .500 X .063 Z&Y | 1 | $0.68 | |
| 28 | 0107-234 | BUSHING,TIGHTENER ARM | 1 | $16.95 | |
| 29 | 0107-226 | PIN & LINK ASS'Y,TIGHTENER | 1 | $18.95 | |
| 30 | 0623-122 | NUT ,FLEX LOCK-THIN 1/4-20 | 1 | $1.50 | |
| 31 | 0107-411 | PAD, TIGHTENER | 1 | $29.95 | |
| 32 | 0707-026 | SPRING, TIGHTENER | 1 | $27.95 | |
| 33 | 0123-082 | PIN, COTTER - 1/16 X 5/8 | 1 | $0.15 | |
| 34 | 0602-437 | O-RING,DROPCASE COVER | 1 | $13.73 | |
| 36 | 8002-134 | SCREW,CAP-HH 5/16-18 X1.25 G5 Z&Y | 1 | $0.65 | |
| 37 | 8053-242 | WASHER,LOCK-5/16 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 38 | 0623-293 | PLUG, DRAIN | 1 | $2.61 | |
| 39 | 1602-213 | O-RING,2-013 | 1 | $0.40 | |
| 40 | 0602-462 | STICK,CHECK-OIL LEVEL | 1 | $10.97 | |
| 41 | 0670-183 | O-RING, 5/8 X 13/16 OD | 1 | $0.26 | |
| 42 | 1602-152 | COVER, OIL VENT | 1 | $13.95 | |
| 43 | 0623-081 | SCREW,SELF TAP-PHPNH 8-32X.31 F Z&Y | 1 | $0.26 | |
| 44 | 0602-857 | PLUG,DROPCASE | 1 | $3.85 | |
| 45 | 0616-964 | GUARD,DROPCASE | 1 | $123.95 | |
| 46 | 8011-137 | BOLT,CRG 5/16-18X2.0 GR1 Z&Y | 1 | $0.25 | |
| 47 | 8050-242 | WASHER,FLAT- 5/16 X .625 X .063 Z&Y | 1 | $2.06 | |
| 48 | 0702-489 | COVER,DROPCASE-ASSY-PTD BLK | 1 | $106.95 |
