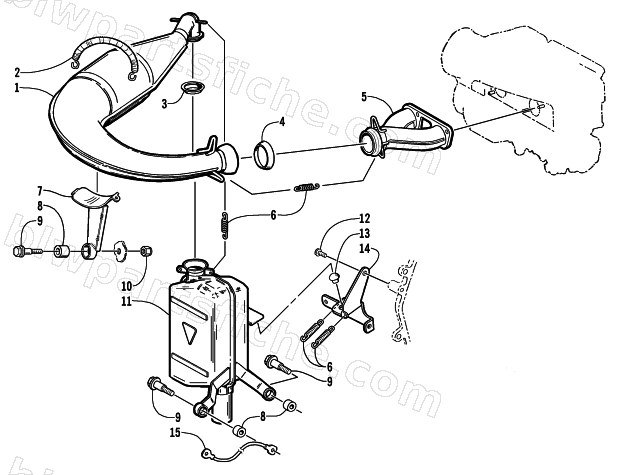

2002 Arctic Cat Z 440 (ES) — EXHAUST ASSEMBLY
2002 Z 440 (ES)
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0712-838 | CHAMBER, EXPANSION-PTD BLK | 1 | $411.95 | |
| 2 | 0612-027 | SPRING EXTENSION | 1 | $27.95 | |
| 3 | 0612-188 | GASKET,EXH.-TAIL PIPE | 1 | $32.95 | |
| 4 | 0612-131 | GASKET,EXHAUST-HEADER JOINT | 1 | $29.95 | |
| 6 | 0612-471 | SPRING,EXHAUST | 1 | $12.35 | |
| 7 | 0712-176 | BRKT,MTG-EXP CHAMBER-PTD BLK | 1 | $27.95 | |
| 8 | 0612-107 | BUSHING,RESONATOR MTG | 1 | $12.95 | |
| 9 | 0623-856 | SCREW, HEX HEAD SHOULDER-1/4-20 | 1 | $5.95 | |
| 10 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 11 | 0712-436 | RESONATOR,EXHAUST-PTD BLK | 1 | $402.95 | |
| 12 | 0623-765 | SCREW,SELF TAP-HWH 5/16-18X.625 TT Z&Y | 1 | $1.23 | |
| 13 | 0612-111 | BUMPER,MOLDED-RUBBER | 1 | $16.49 | |
| 14 | 0712-882 | BRKT,MTG-RESONATOR/BATT TRAY-PTD BLK | 1 | $24.95 | |
| 15 | 0686-126 | HARNESS,ENGINE-GROUND | 1 | $12.35 |
