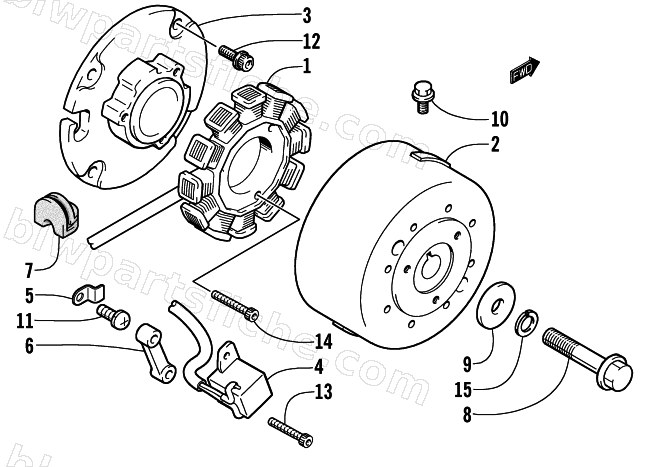

2002 Arctic Cat Z 440 SNO PRO () — MAGNETO
2002 Z 440 SNO PRO ()
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3005-636 | STATOR | 1 | $1,030.95 | |
| 2 | 3005-925 | FLYWHEEL | 1 | $1,146.95 | |
| 3 | 3006-022 | BASE,STATOR | 1 | $156.95 | |
| 4 | 3005-926 | SENSOR, IGNITION TIMING | 1 | $331.95 | |
| 5 | 3005-927 | CLAMP, LEAD WIRE | 1 | $6.95 | |
| 6 | 3005-928 | SPACER, PULSER COIL | 1 | $57.95 | |
| 7 | 3005-918 | GROMMET, MAGNETO LEAD WIRE | 1 | $5.92 | |
| 8 | 3006-476 | BOLT,M10X54 | 1 | $5.65 | |
| 9 | 3005-929 | WASHER, ( 10.5X25X3.2 ) | 1 | $10.97 | |
| 10 | 3007-371 | BOLT (6X12) | 1 | $3.16 | |
| 11 | 3007-553 | SCREW | 1 | $2.33 | |
| 12 | 3007-449 | BOLT | 1 | $3.16 | |
| 13 | 3004-572 | BOLT, 5X20 | 1 | $1.95 | |
| 14 | 3007-489 | BOLT | 1 | $3.16 | |
| 15 | 3007-424 | LOCK WASHER | 1 | $4.26 |
