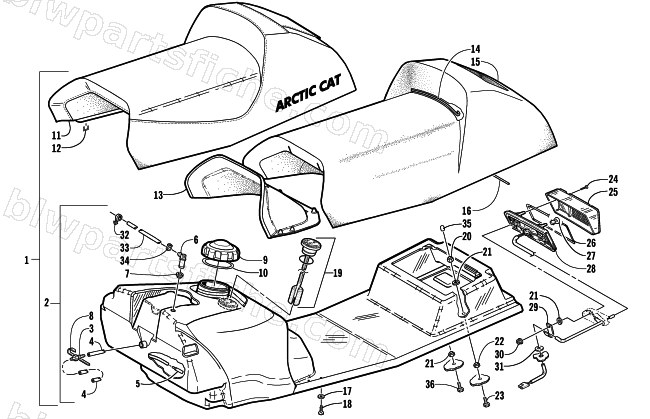

GAS TANK, SEAT, AND TAILLIGHT ASSEMBLY
2002 Z 440
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 1718-118 | SEAT-ASSY-02 Z 370 | 1 | $757.95 | |
| 0 | 1718-119 | SEAT-ASSY-02 Z 370 ES | 1 | $757.95 | |
| 2 | 0770-498 | TANK, GAS-ASSY-01 Z370/Z440 | 1 | $468.95 | |
| 2 | 0770-549 | TANK, GAS- ASSY-02 Z 370 ES | 1 | $414.95 | |
| 3 | 0670-042 | OUTLET,GAS TANK | 1 | $19.25 | |
| 4 | 0610-017 | HOSE,GAS 3/16 X100' | 1 | $232.95 | |
| 4 | 0610-008 | HOSE, GAS LINE-3/16X25' | 1 | $93.95 | |
| 5 | 0510-358 | STRAINER,GAS TANK | 1 | $6.83 | |
| 6 | 1670-324 | ELBOW, 90 DEG-1/4 BARB | 1 | $3.44 | |
| 7 | 1670-325 | GROMMET, 1/4"-FUEL TANK | 1 | $2.88 | |
| 8 | 0670-289 | TAPE, TEFLON-ROLL | 1 | $6.34 | |
| 9 | 0470-541 | CAP, FUEL - 3.5" | 1 | $46.95 | |
| 10 | 1670-228 | SEAL,GAS CAP | 1 | $26.95 | |
| 11 | 1706-859 | COVER, SEAT W/DECAL-02 Z370 | 1 | $490.95 | |
| 11 | 1706-860 | COVER, SEAT-W/DECALS-02 Z370 ES | 1 | $490.95 | |
| 12 | 0624-528 | STAPLE,5/16L X 1/2W-20GA SS/5000 PAK-SEA | 1 | $161.95 | |
| 13 | 1606-126 | INSERT,SEAT FOAM | 1 | $90.95 | |
| 14 | 1606-150 | WIRE, SEAT | 1 | $3.02 | |
| 15 | 1706-197 | FOAM,SEAT(77-82ILD).44@5.7 | 1 | $189.95 | |
| 17 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 18 | 0623-309 | SCREW, SELF TAP-PHPNH 12-11X3/4 A Z&B | 1 | $0.40 | |
| 19 | 1670-241 | GAUGE, FUEL,W/GASKET - PRESS FIT | 1 | $102.95 | |
| 20 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 21 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 | |
| 22 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 23 | 8002-042 | SCREW,CAP-HH 1/4-20 X1.00 G5 Z&Y | 1 | $0.40 | |
| 24 | 0609-093 | SCREW,RETAIN(M4X25 SELF TAPP) | 1 | $0.68 | |
| 25 | 0609-090 | LENS,TAILLIGHT | 1 | $30.95 | |
| 26 | 0609-092 | GASKET,TAILLIGHT | 1 | $13.73 | |
| 27 | 0109-460 | BULB,STOP/TAILLAMP | 1 | $2.06 | |
| 28 | 0609-091 | HOUSING,TAILLIGHT WITH SOCKET & HARNESS | 1 | $81.95 | |
| 29 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 30 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 31 | 0617-136 | SEAL,FOAM-SEAT BASE | 1 | $2.06 | |
| 32 | 0623-101 | ROUTING CLIP,SNAP-IN | 1 | $5.51 | |
| 33 | 0610-015 | HOSE,GAS 1/4 X100' | 1 | $231.59 | |
| 33 | 0610-016 | HOSE,GAS 1/4 X25' | 1 | $117.95 | |
| 34 | 0623-063 | CLAMP, HOSE (SNP02) | 1 | $4.40 | |
| 36 | 8002-043 | SCREW,CAP-HH 1/4-20 X1.125 G5 Z&Y | 1 | $0.68 |
