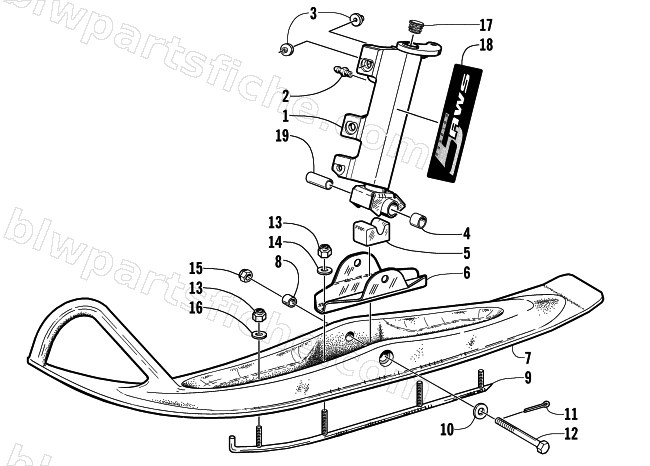

SKI AND SPINDLE ASSEMBLY
2002 Z 570 SS
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0703-648 | SPINDLE,FAB.-RH MILLED (PS) | 1 | $357.95 | |
| 1 | 0703-649 | SPINDLE,FAB.-LH MILLED (PS) | 1 | $338.95 | |
| 2 | 0623-010 | ZERK, GREASE (LONG) | 1 | $2.47 | |
| 3 | 0603-647 | INSERT,ALUM.-SPINDLE | 1 | $5.78 | |
| 4 | 0603-158 | BEARING,GARLOCK 12DU12 | 1 | $8.21 | |
| 5 | 1603-257 | DAMPER,BLOWMOLDED SKI | 1 | $34.95 | |
| 6 | 1603-256 | SADDLE,SKI-PTD BLK | 1 | $50.95 | |
| 8 | 1603-258 | INSERT,BLOWMOLDED SKI | 1 | $13.95 | |
| 9 | 1703-003 | SKAG, LONG-4'CRB/HDWELD,PTD BLK | 1 | $65.95 | |
| 10 | 8050-307 | WASHER,FLAT- 7/16 X .922 X .065 Z&Y | 1 | $0.15 | |
| 11 | 0123-458 | PIN,COTTER 1/8X1 | 1 | $0.40 | |
| 12 | 0623-776 | SCREW, CAP-HH 7/16-20 X 5.50 W/HOLE | 1 | $14.95 | |
| 13 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 14 | 8050-272 | WASHER,FLAT- 3/8 X .734 X .063 Z&Y | 1 | $0.26 | |
| 15 | 0123-296 | NUT,FLEX-FULL 7/16-20 | 1 | $6.47 | |
| 16 | 8050-277 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.26 | |
| 17 | 0623-831 | CAP, SPINDLE (RDR-10-1420) | 1 | $1.50 | |
| 18 | 4611-374 | DECAL, SPINDLE-RH | 1 | $33.95 | |
| 18 | 4611-375 | DECAL, SPINDLE-LH | 1 | $100.95 | |
| 19 | 2603-548 | AXLE,SPINDLE | 1 | $19.25 |
