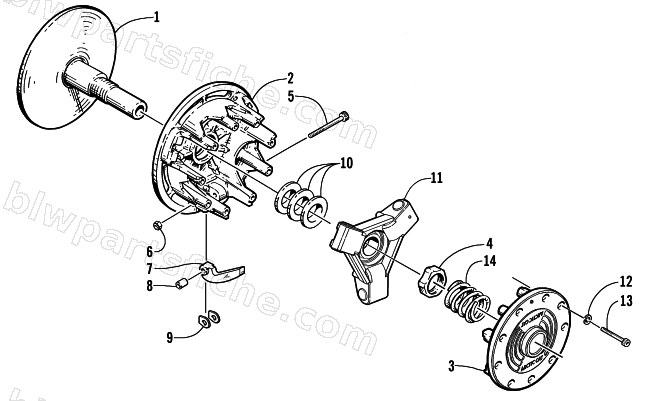

DRIVE CLUTCH
2002 Z 570 ()
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0746-839 | KIT,DRIVE CLUTCH-UNCAL-8.25 30MM/D | 1 | $850.95 | |
| 0 | 1639-030 | KIT, CAM ARM REPAIR- W/O ARMS | 1 | $81.95 | |
| 3 | 0746-086 | COVER ASSY - DRIVE CLUTCH | 1 | $116.95 | |
| 4 | 0646-140 | NUT,JAM-SPIDER | 1 | $17.95 | |
| 5 | 0646-295 | PIN, CAM-ARM | 1 | $15.11 | |
| 6 | 0623-392 | NUT,FLEX LOCK 10-24 | 1 | $1.50 | |
| 7 | 0746-539 | ARM,CAM-W/BRG-53.0 GRAM | 1 | $16.49 | |
| 7 | 0746-585 | ARM, CAM-W/ BRG-49 GRAM | 1 | $23.39 | |
| 7 | 0746-607 | ARM,CAM-W/ BRG-46.0 GRAMS | 1 | $14.95 | |
| 8 | 0646-160 | BEARING,CAM ARM | 1 | $15.11 | |
| 9 | 0646-101 | WASHER,STEEL-CLUTCH | 1 | $0.95 | |
| 10 | 0646-265 | WASHER,SPACER-CLUTCH .060 (BLACK) | 1 | $3.16 | |
| 11 | 0746-118 | SPIDER, ASSY-MACH | 1 | $283.95 | |
| 12 | 8051-212 | WASHER,SPR LOCK-1/4 .252X.487X.062 Z&Y | 1 | $0.12 | |
| 13 | 0623-596 | SCREW,MACH-TSH 1/4X2.50 Z&Y | 1 | $4.95 | |
| 14 | 0646-149 | SPRING,CLUTCH-RED | 1 | $57.95 |
