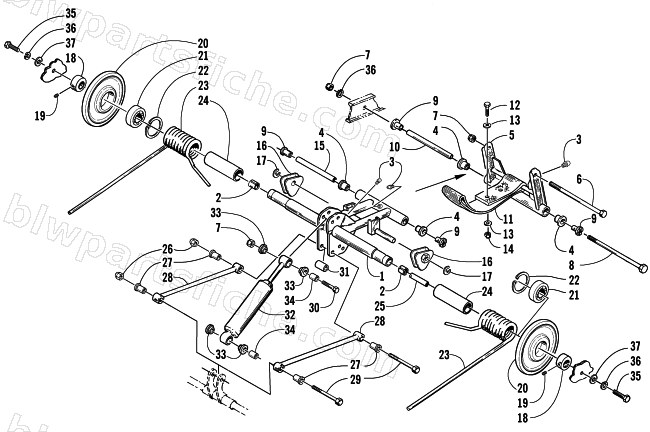

REAR SUSPENSION REAR ARM ASSEMBLY
2002 Z 570 ()
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0704-639 | ARM, IDLER,-FABR | 1 | $282.95 | |
| 2 | 0603-083 | BEARING,GARLOCK 10DU12 | 1 | $8.21 | |
| 3 | 0623-922 | FITTING,GREASE-PRESS FIT W/CHK BALL | 1 | $1.92 | |
| 4 | 0104-386 | BUSHING,REAR ARM | 1 | $4.26 | |
| 5 | 0704-643 | ARM, REAR,-FABR | 1 | $85.95 | |
| 6 | 0623-106 | SCREW,CAP 3/8-16X8 ZN/YLW GR5 | 1 | $2.95 | |
| 7 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 8 | 0623-907 | SCREW, CAP-HH 3/8-16X10.0 GR5 Z&Y | 1 | $4.26 | |
| 9 | 0603-061 | AXLE,SERRATED | 1 | $1.92 | |
| 11 | 1604-130 | STRAP,LIMITER-REAR | 1 | $86.95 | |
| 12 | 8002-042 | SCREW,CAP-HH 1/4-20 X1.00 G5 Z&Y | 1 | $0.40 | |
| 13 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 | |
| 14 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 15 | 0604-204 | AXLE,IDLER-LOWER | 1 | $44.95 | |
| 16 | 1604-204 | BLOCK,SPRING-ADJUSTER-RH | 1 | $19.25 | |
| 16 | 1604-205 | BLOCK,SPRING-ADJUSTER-LH | 1 | $19.25 | |
| 17 | 0623-138 | RING,RETAINING-ADJ BLOCK 9/16 | 1 | $0.68 | |
| 18 | 0704-853 | COLLAR,LOCK-IDLER WHEEL-PTD BLK | 1 | $45.95 | |
| 19 | 0623-217 | SCREW,SET 1/4-20X.25 TYPE G | 1 | $0.35 | |
| 20 | 1604-690 | WHEEL,IDL-5.63 W/1" ID(NO INSR) | 1 | $53.95 | |
| 21 | 0107-598 | BEARING,BALL-25MM | 1 | $12.35 | |
| 22 | 0123-798 | RING,INTERNAL-RETAINING | 1 | $1.64 | |
| 23 | 0704-856 | SPRING,SUSPENSION-RH-PTD BLK | 1 | $60.95 | |
| 23 | 0704-857 | SPRING,SUSPENSION-LH-PTD BLK | 1 | $60.95 | |
| 24 | 0114-254 | SLEEVE,SPRING | 1 | $6.95 | |
| 25 | 0114-163 | AXLE,INNER CARRIAGE | 1 | $56.95 | |
| 26 | 8041-486 | NUT,HEX THIN LOCK-NYL 3/8-16 Z&Y | 1 | $0.40 | |
| 27 | 1604-498 | AXLE,LINK-FLANGED(99 PRO) | 1 | $15.11 | |
| 28 | 0704-350 | LINK,REAR SHOCK-PTD BLK | 1 | $27.95 | |
| 29 | 8002-233 | SCREW,CAP-HH 3/8-16 X3.50 G5 Z&Y | 1 | $1.78 | |
| 30 | 8002-227 | SCREW,CAP-HH 3/8-16 X2.00 G5 Z&Y | 1 | $1.95 | |
| 31 | 0604-298 | SPACER,SHOCK LINK-Z&Y | 1 | $33.95 | |
| 32 | 1604-455 | SHOCK ABSORBER,GABRIAL-REAR ARM | 1 | $147.95 | |
| 33 | 0604-321 | BUSHING,PLASTIC,SHOCK ABSORBER | 1 | $6.75 | |
| 34 | 1604-185 | SLEEVE,SHOCK ABSORBER | 1 | $29.95 | |
| 35 | 8002-224 | SCREW,CAP-HH 3/8-16 X1.25 G5 Z&Y | 1 | $1.09 | |
| 36 | 8051-277 | WASHER,SPR LOCK-3/8 .377X.688X.115 Z&Y | 1 | $1.50 | |
| 37 | 0623-044 | WSHR,FLAT HARD .375 X.875 | 1 | $4.68 |
