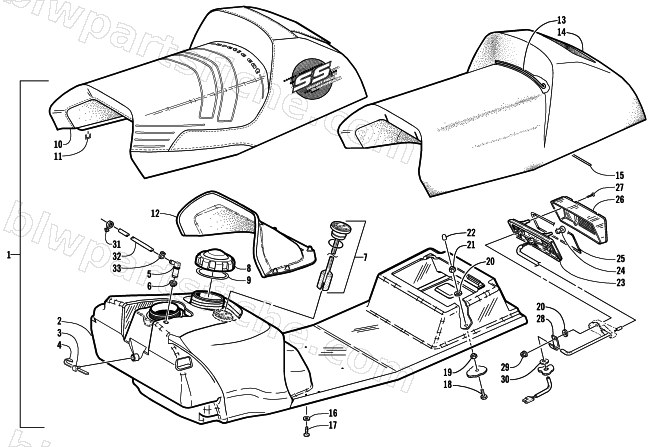

2002 Arctic Cat ZL 600 EFI SS () — GAS TANK, SEAT, AND TAILLIGHT ASSEMBLY
2002 ZL 600 EFI SS ()
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 1718-140 | SEAT-ASSY-02 ZL 600 EFI SS-BLK | 1 | $581.95 | |
| 0 | 1718-098 | SEAT, ASSY-'02 ZL 600 EFI SS | 1 | $757.95 | |
| 2 | 0770-558 | TANK/SEATBASE, GAS-ASSY-02 600 EFI | 1 | $401.95 | |
| 9 | 1670-228 | SEAL,GAS CAP | 1 | $26.95 | |
| 10 | 1706-897 | COVER, SEAT W/DECALS-02 ZL 600 SS BLK | 1 | $414.95 | |
| 10 | 1706-833 | COVER, SEAT W/DECAL-02 ZL SS | 1 | $391.95 | |
| 11 | 0624-528 | STAPLE,5/16L X 1/2W-20GA SS/5000 PAK-SEA | 1 | $161.95 | |
| 12 | 1606-126 | INSERT,SEAT FOAM | 1 | $90.95 | |
| 13 | 1606-150 | WIRE, SEAT | 1 | $3.02 | |
| 14 | 1706-197 | FOAM,SEAT(77-82ILD).44@5.7 | 1 | $189.95 | |
| 16 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 17 | 0623-309 | SCREW, SELF TAP-PHPNH 12-11X3/4 A Z&B | 1 | $0.40 | |
| 18 | 8002-042 | SCREW,CAP-HH 1/4-20 X1.00 G5 Z&Y | 1 | $0.40 | |
| 19 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 20 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 | |
| 21 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 23 | 0609-091 | HOUSING,TAILLIGHT WITH SOCKET & HARNESS | 1 | $81.95 | |
| 24 | 0109-460 | BULB,STOP/TAILLAMP | 1 | $2.06 | |
| 25 | 0609-092 | GASKET,TAILLIGHT | 1 | $13.73 | |
| 26 | 0609-090 | LENS,TAILLIGHT | 1 | $30.95 | |
| 27 | 0609-093 | SCREW,RETAIN(M4X25 SELF TAPP) | 1 | $0.68 | |
| 28 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 29 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 30 | 0617-136 | SEAL,FOAM-SEAT BASE | 1 | $2.06 | |
| 31 | 0623-101 | ROUTING CLIP,SNAP-IN | 1 | $5.51 | |
| 32 | 0610-015 | HOSE,GAS 1/4 X100' | 1 | $231.59 | |
| 32 | 0610-016 | HOSE,GAS 1/4 X25' | 1 | $117.95 | |
| 33 | 0623-063 | CLAMP, HOSE (SNP02) | 1 | $4.40 |
