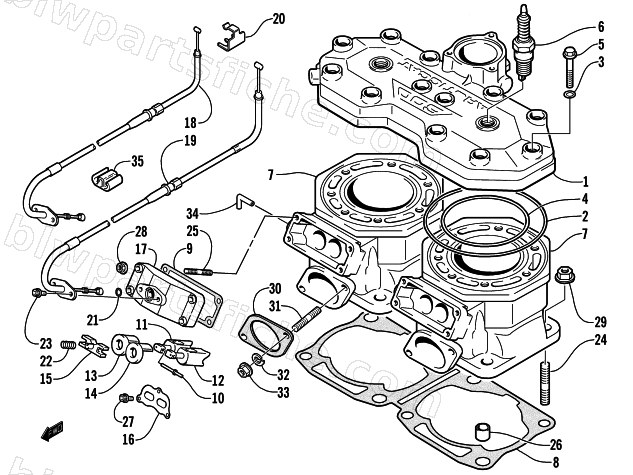

CYLINDER AND HEAD ASSEMBLY
2002 ZL 600 EFI
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3005-809 | HEAD, CYLINDER (01, 02 600 L/C X 2 EID) | 1 | $555.95 | |
| 2 | 3003-765 | O RING,HEAD-OUTER | 1 | $22.01 | |
| 3 | 3003-227 | O-RING, CYL HD BLT | 1 | $3.85 | |
| 4 | 3004-080 | O-RING,HEAD-INNER | 1 | $32.95 | |
| 5 | 3007-460 | BOLT | 1 | $3.85 | |
| 6 | 0217-709 | SPARK PLUG, BR9EYA | 1 | $5.09 | |
| 7 | 3005-653 | CYLINDER, 600 X 2 | 1 | $1,280.95 | |
| 8 | 3005-654 | GASKET,CYLINDER | 1 | $49.95 | |
| 9 | 3005-283 | GASKET,CYL.COVER | 1 | $12.35 | |
| 10 | 3005-284 | PIN,EXH.VALVE | 1 | $42.95 | |
| 11 | 3005-656 | VALVE,EXHAUST RH | 1 | $283.95 | |
| 12 | 3005-657 | VALVE,EXHAUST LH | 1 | $283.95 | |
| 13 | 3005-658 | GUIDE,EXHAUST VALVE RH | 1 | $238.95 | |
| 14 | 3005-659 | GUIDE,EXHAUST VALVE LH | 1 | $247.95 | |
| 15 | 3005-655 | STOPPER,EXHAUST VALVE | 1 | $53.95 | |
| 16 | 3005-660 | PLATE,EXHAUST VALVE | 1 | $16.95 | |
| 17 | 3005-662 | COVER,CYLINDER | 1 | $129.95 | |
| 18 | 3006-556 | CABLE,EXH VALVE | 1 | $96.95 | |
| 19 | 3006-557 | CABLE,EXH VALVE | 1 | $101.95 | |
| 20 | 3005-747 | HOLDER, EXHAUST VALVE CABLE | 1 | $15.11 | |
| 21 | 3005-226 | O RING, WATER DRAIN | 1 | $5.09 | |
| 22 | 3005-652 | SPRING | 1 | $6.47 | |
| 23 | 3007-433 | BOLT | 1 | $3.16 | |
| 24 | 3005-596 | STUD,BOLT | 1 | $17.87 | |
| 25 | 0693-905 | STUD BOLT,M6X30 | 1 | $10.97 | |
| 26 | 3004-975 | PIN, CYLINDER KNOCK(ALIGMENT) | 1 | $2.61 | |
| 27 | 3007-519 | BOLT,PULSER COIL | 1 | $3.16 | |
| 28 | 3007-373 | NUT | 1 | $3.16 | |
| 29 | 3007-391 | NUT,INTER COOLER BRKT | 1 | $3.16 | |
| 30 | 3003-503 | GASKET,EXHAUST NON-ASBESTOS | 1 | $19.25 | |
| 31 | 3007-419 | STUD BOLT | 1 | $4.95 | |
| 32 | 3004-280 | WASHER, LOCK,8MM | 1 | $1.95 | |
| 33 | 3007-416 | NUT | 1 | $2.75 | |
| 34 | 2670-203 | FITTING,90 ELBOW-3/16 BARB X .220 ID | 1 | $14.95 | |
| 35 | 3005-808 | CLAMP | 1 | $6.95 |
