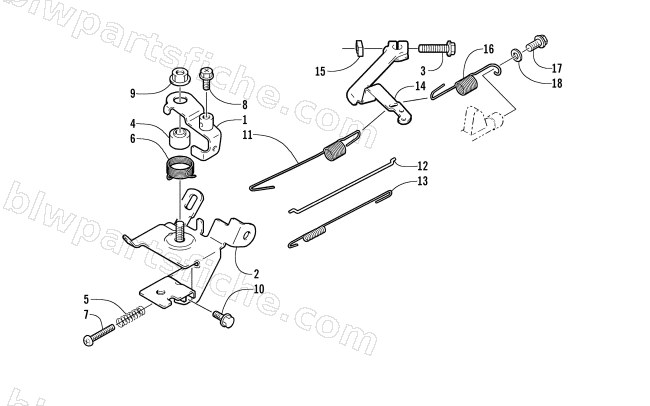

THROTTLE CONTROL ASSEMBLY
2002 ZR 120
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0694-016 | LEVER,THROTTLE CABLE | 1 | $43.95 | |
| 2 | 0694-017 | BRACKET,GOV CONTROL | 1 | $47.95 | |
| 3 | 0693-416 | BOLT,M6X25 | 1 | $2.06 | |
| 4 | 3002-459 | SPACER,M6 | 1 | $4.95 | |
| 5 | 0691-901 | SPRING,M7 | 1 | $3.44 | |
| 6 | 0694-038 | SPRING, '02 120 F/C | 1 | $10.97 | |
| 7 | 3007-691 | SCREW,M5X25 | 1 | $2.75 | |
| 8 | 3007-389 | SCREW,ABV VSV | 1 | $3.16 | |
| 9 | 3004-351 | NUT,6MM | 1 | $2.95 | |
| 10 | 0693-241 | BOLT, M6X12 | 1 | $3.16 | |
| 11 | 0694-015 | SPRING,THROTTLE CONTROL | 1 | $20.63 | |
| 12 | 0694-019 | ROD,CARBURETOR | 1 | $16.49 | |
| 13 | 0691-455 | SPRING, CARBURETOR ROD | 1 | $12.35 | |
| 14 | 0693-259 | LEVER, THROTTLE CONTROL | 1 | $36.95 | |
| 15 | 0691-017 | NUT,6MM | 1 | $1.78 | |
| 16 | 0623-965 | SPRING, THROTTLE RTN | 1 | $17.95 | |
| 17 | 0623-966 | SCREW,SELF TAP-HWH M6 X 12 Z (TRI LOB) | 1 | $1.09 | |
| 18 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 |
