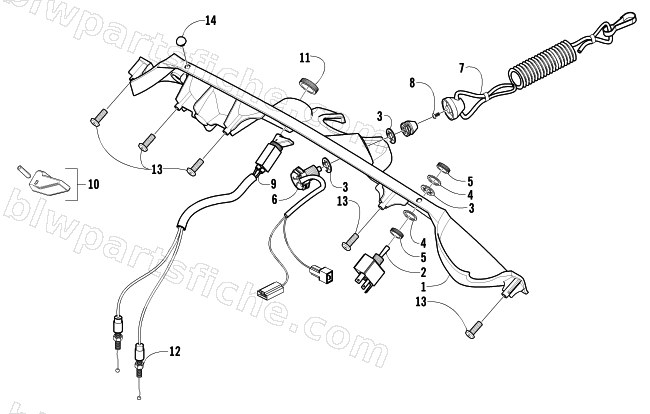

CONSOLE AND SWITCH ASSEMBLY
2002 ZR 440 SNO PRO
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2606-474 | CONSOLE,CARB-BLACK | 1 | $97.95 | |
| 2 | 0609-233 | SWITCH,HIGH/LOW BEAM | 1 | $25.95 | |
| 3 | 0123-985 | WASHER,INT LOCK .472 | 1 | $2.88 | |
| 4 | 0623-153 | WASHER,NYLON 1/2X5/8-.030 | 1 | $2.95 | |
| 5 | 0609-220 | NUT,KNURLED-BLACK (BRASS) | 1 | $1.95 | |
| 6 | 0709-064 | TETHER SWITCH-ASSY (OPEN) | 1 | $55.95 | |
| 7 | 0709-055 | TETHER CORD W/ SCREW | 1 | $34.95 | |
| 9 | 0687-145 | CABLE, CHOKE-DUAL MX34 | 1 | $112.95 | |
| 10 | 0636-062 | LEVER KIT,CHOKE | 1 | $12.35 | |
| 11 | 0687-132 | NUT,PLASTIC-LP CHOKE | 1 | $5.65 | |
| 12 | 0623-464 | NUT, LOCKING-THROTTLE CABLE | 1 | $0.26 | |
| 13 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 14 | 1612-287 | BUMPER,MOLDED-RUBBER(CHASSIS) | 1 | $3.16 |
