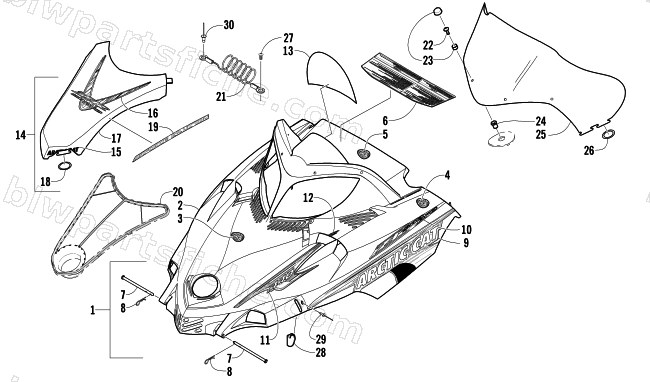

HOOD AND WINDSHIELD ASSEMBLY
2002 ZR 440 SNO PRO
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1718-127 | HOOD W/DECALS | 1 | $1,761.95 | |
| 2 | 1718-126 | HOOD W/O DECALS | 1 | $967.95 | |
| 3 | 0717-169 | FOAM, HOOD-CENTER FRT | 1 | $8.95 | |
| 4 | 0717-170 | FOAM, HOOD-REAR RH | 1 | $8.95 | |
| 4 | 0717-171 | FOAM, HOOD-REAR LH | 1 | $8.95 | |
| 5 | 0717-172 | FOAM, HOOD-REAR | 1 | $8.95 | |
| 6 | 4611-496 | DECAL, CAUTION/WARNING | 1 | $39.95 | |
| 7 | 1623-026 | PIN,CLEVIS-1/4 | 1 | $33.95 | |
| 8 | 0623-847 | CLIP, HAIRPIN | 1 | $0.95 | |
| 9 | 4611-486 | DECAL, HOOD-LWR "ARCTIC CAT" RH | 1 | $165.95 | |
| 9 | 4611-487 | DECAL, HOOD-LWR "ARCTIC CAT" LH | 1 | $109.95 | |
| 10 | 4611-484 | DECAL, HOOD-"ZR SNO PRO" | 1 | $106.95 | |
| 11 | 4611-482 | DECAL, HOOD-FRT-"440" RH | 1 | $37.95 | |
| 11 | 4611-483 | DECAL, HOOD-FRT-"440" LH | 1 | $103.95 | |
| 12 | 4611-490 | DECAL,HOOD-VENT RH | 1 | $48.95 | |
| 12 | 4611-491 | DECAL,HOOD-VENT LH | 1 | $66.95 | |
| 13 | 4611-873 | DECAL,GAUGE COVER | 1 | $75.95 | |
| 14 | 1718-249 | COVER,HOOD-W/DECALS | 1 | $288.95 | |
| 15 | 3611-187 | DECAL, HOOD-"ARCTIC CAT"-BLK | 1 | $26.95 | |
| 16 | 4611-488 | DECAL, HOOD-CREST | 1 | $105.95 | |
| 17 | 2706-030 | COVER,HOOD-SNOW SEPERATOR-PTD GRN | 1 | $165.95 | |
| 18 | 2606-801 | O-RING,HOOD | 1 | $5.92 | |
| 19 | 4611-489 | DECAL, HOOD-"AIRFORCE INDUCTION" | 1 | $40.95 | |
| 20 | 3606-150 | SCREEN,HOOD-AIR INTAKE | 1 | $79.95 | |
| 21 | 2606-726 | CABLE,HOOD-17.00 | 1 | $20.63 | |
| 22 | 0623-902 | SCREW, MACH-PHTRH-10-32X5/8-ZY | 1 | $0.95 | |
| 23 | 0124-054 | SNAP CAP W/WASHER | 1 | $1.23 | |
| 24 | 0623-845 | NUT, EXP,10-32 | 1 | $2.47 | |
| 25 | 2606-347 | WINDSHIELD, FORMED-GREEN | 1 | $216.95 | |
| 26 | 0616-032 | O-RING-WINDSHIELD (1 I.D.) | 1 | $1.78 | |
| 27 | 0623-302 | SCREW,SELF TAP-HWH #12X1/2 TYPE | 1 | $0.26 | |
| 28 | 1606-441 | HOLDDOWN,HOOD STRAP-SIDE ('98 440 PRO) | 1 | $13.73 | |
| 28 | 2606-096 | HOLDDOWN,HOOD STRAP-SIDE RH | 1 | $30.95 | |
| 29 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 30 | 8060-508 | RIVET,BLIND-DH SS56 BLK | 1 | $0.26 |
