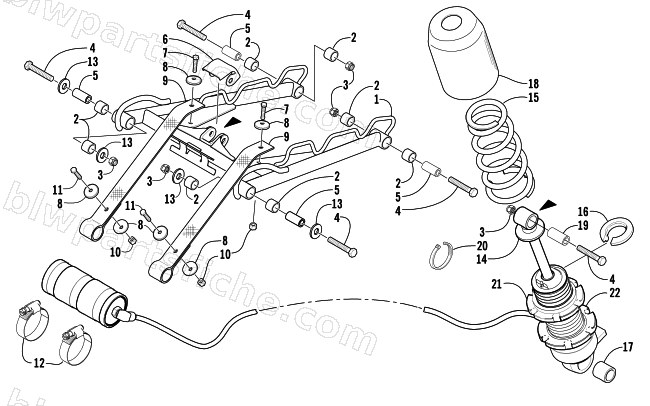

2002 Arctic Cat ZR 440 SNO PRO — REAR SUSPENSION FRONT ARM ASSEMBLY
2002 ZR 440 SNO PRO
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0704-590 | ARM,FRONT-FABR-BLK(02 PRO) | 1 | $509.95 | |
| 2 | 0604-889 | BUSHING,FRONT ARM | 1 | $3.71 | |
| 3 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 4 | 8002-228 | SCREW,CAP-HH 3/8-16 X2.25 G5 Z&Y | 1 | $3.44 | |
| 5 | 0104-629 | SPACER,FRONT ARM-PIVOT | 1 | $19.25 | |
| 6 | 2604-112 | GUIDE,CENTER-FRT ARM-PTD BLK | 1 | $27.95 | |
| 7 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 8 | 0623-875 | WASHER, BACKING-7MM ID X 11/8OD | 1 | $1.78 | |
| 9 | 2604-140 | STRAP,LIMITER-1.250"X16.15" | 1 | $19.25 | |
| 10 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 11 | 8002-043 | SCREW,CAP-HH 1/4-20 X1.125 G5 Z&Y | 1 | $0.68 | |
| 12 | 0214-025 | CLAMP,HOSE #32 | 1 | $4.40 | |
| 13 | 0623-044 | WSHR,FLAT HARD .375 X.875 | 1 | $4.68 | |
| 14 | 0704-744 | SHOCK, FRT ARM | 1 | $901.95 | |
| 15 | 1604-125 | SPRING,COMPRESSION-FRONT | 1 | $55.95 | |
| 16 | 1603-890 | RETAINER,SPRING | 1 | $13.73 | |
| 17 | 1604-791 | BUSHING,SHOCK-.890ID X .800 | 1 | $15.11 | |
| 18 | 0604-790 | COVER,SUSPENSION SPRING (SHORT) | 1 | $24.77 | |
| 19 | 1603-531 | AXLE,SHOCK-FRT ARM | 1 | $4.26 | |
| 20 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 21 | 0603-259 | NUT,RETAINER-SPRING | 1 | $5.65 |
