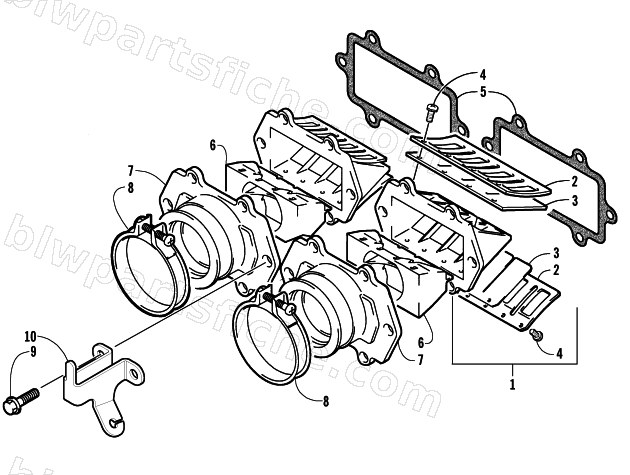

2002 Arctic Cat ZR 440 SNO PRO — REED VALVE ASSEMBLY
2002 ZR 440 SNO PRO
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3005-876 | VALVE ASSY, REED | 1 | $249.95 | |
| 2 | 3005-877 | STOPPER, REED VALVE | 1 | $30.95 | |
| 3 | 3005-878 | VALVE, REED | 1 | $53.95 | |
| 4 | 3004-506 | SCREW, 3X8 | 1 | $2.47 | |
| 5 | 3005-879 | GASKET, REED VALVE | 1 | $17.87 | |
| 6 | 3006-351 | GUIDE,REED VALVE '02 440 SNO PRO | 1 | $49.95 | |
| 7 | 3006-911 | PIPE ASS'Y,INT.440 02 SNO PRO | 1 | $197.95 | |
| 8 | 3004-212 | CLAMP, INTAKE,M52 | 1 | $27.95 | |
| 9 | 3007-409 | BOLT | 1 | $3.16 | |
| 10 | 2606-836 | BRKT,MTG-OIL CABLE | 1 | $57.95 |
