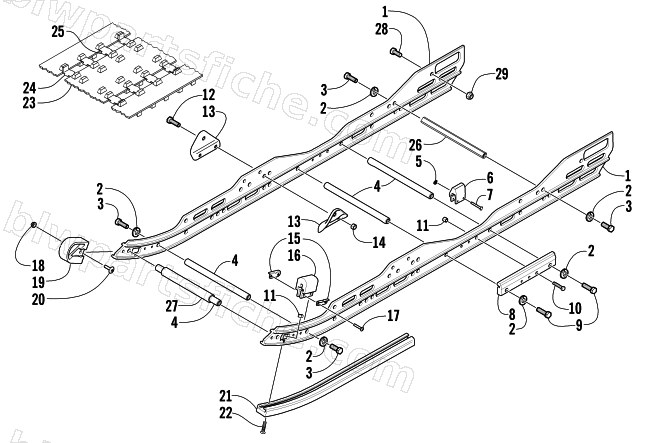

2002 Arctic Cat ZR 440 SNO PRO — SLIDE RAIL AND TRACK ASSEMBLY
2002 ZR 440 SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2604-191 | RAIL,SUSP-PTD GREEN (2604-118) | 1 | $244.95 | |
| 1 | 2604-118 | RAIL,SUSP-128"-FORMED | 1 | $298.95 | |
| 2 | 8051-277 | WASHER,SPR LOCK-3/8 .377X.688X.115 Z&Y | 1 | $1.50 | |
| 3 | 8002-224 | SCREW,CAP-HH 3/8-16 X1.25 G5 Z&Y | 1 | $1.09 | |
| 4 | 0604-930 | AXLE,XBRC (ALUM) -625X8.750 (3/8-16) | 1 | $37.95 | |
| 5 | 0623-773 | PUSHNUT - 3/16 DIA STUD | 1 | $1.09 | |
| 7 | 0623-772 | RIVET,SOLID-3/16X1.5 | 1 | $0.95 | |
| 8 | 2604-192 | BRACE,RAIL-RH-PTD GREEN | 1 | $41.95 | |
| 8 | 2604-193 | BRACE,RAIL-LH PTD GRN | 1 | $41.95 | |
| 8 | 2604-120 | BRACE,RAIL-RH | 1 | $40.95 | |
| 8 | 2604-121 | BRACE,RAIL-LH | 1 | $41.95 | |
| 10 | 8002-043 | SCREW,CAP-HH 1/4-20 X1.125 G5 Z&Y | 1 | $0.68 | |
| 11 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 12 | 8002-131 | SCREW,CAP-HH 5/16-18 X.875 G5 Z&Y | 1 | $0.95 | |
| 13 | 2604-159 | BRACKET, MTG - FRONT ARM-PTD BLK | 1 | $30.95 | |
| 14 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 15 | 0604-967 | BRACKET,RETAINING-SHOCK PAD | 1 | $3.57 | |
| 16 | 0604-918 | PAD,SHOCK-RUBBER | 1 | $13.73 | |
| 17 | 8060-633 | RIVET,BLIND-DH AA614 BLK | 1 | $1.09 | |
| 18 | 0623-977 | NUT, FLANGE LOCK-1/4-20 UNC | 1 | $0.65 | |
| 19 | 1604-137 | NOSEPIECE,RAIL-BLUNT | 1 | $6.75 | |
| 20 | 8007-581 | SCREW, MACH-THCR 1/4-20X.87 G2 Z&Y | 1 | $0.65 | |
| 21 | 2604-257 | WEARSTRIP,SLIDE RAIL-BLK | 1 | $33.95 | |
| 22 | 0123-859 | SCREW,MACH-PHFH 1/4-20 X 1 1/8 Z&Y | 1 | $1.09 | |
| 23 | 1602-503 | TRACK, 13.5X128X1.375 | 1 | $1,141.95 | |
| 24 | 2602-384 | CLIP,WEAR | 1 | $3.57 | |
| 25 | 1602-268 | R/B 1602-134 | 1 | $3.95 | |
| 26 | 2604-259 | CROSSBRACE,REAR ARM | 1 | $34.95 | |
| 27 | 2604-281 | SPACER,ALUMINUM-LIMITER STRAPS -5.38" | 1 | $13.73 | |
| 28 | 8002-220 | SCREW,CAP-HH 3/8-16 X.75 G5 Z&Y | 1 | $0.95 | |
| 29 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 |
