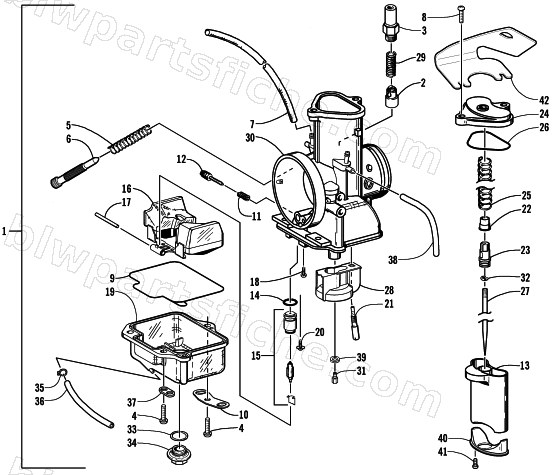

2002 Arctic Cat ZR 440 SNO PRO () — CARBURETOR
2002 ZR 440 SNO PRO ()
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 1670-268 | CARB,TMX34-17 - LAYDOWN STYLE | 1 | $532.95 | |
| 2 | 6505-035 | PLUNGER,STARTER | 1 | $17.87 | |
| 3 | 6505-188 | CAP,STARTER PLUNGER | 1 | $16.49 | |
| 4 | 6505-980 | SCREW | 1 | $1.50 | |
| 5 | 6505-981 | SPRING, IDLE | 1 | $4.95 | |
| 6 | 6505-982 | SCREW, IDLE | 1 | $13.73 | |
| 7 | 6505-983 | HOSE, VENT | 1 | $15.11 | |
| 8 | 6505-984 | SCREW | 1 | $1.64 | |
| 9 | 6506-015 | GASKET,FLOAT BODY ASSEMBLY | 1 | $24.77 | |
| 10 | 6505-986 | PLATE | 1 | $16.49 | |
| 11 | 6505-987 | SPRING, IDLE AIR | 1 | $3.44 | |
| 12 | 6505-988 | SCREW, IDLE AIR | 1 | $6.95 | |
| 13 | 6506-172 | VALVE,PISTON-3.0 | 1 | $106.95 | |
| 13 | 6505-990 | VALVE, PISTON-4.0 | 1 | $113.95 | |
| 13 | 6505-991 | VALVE,PISTON-4.5 | 1 | $122.95 | |
| 14 | 6505-875 | O-RING | 1 | $1.64 | |
| 15 | 6506-255 | VALVE, NEEDLE 1.5 | 1 | $54.95 | |
| 16 | 6505-994 | FLOAT ASSY | 1 | $129.95 | |
| 17 | 6505-995 | PIN, FLOAT | 1 | $6.89 | |
| 18 | 6505-996 | SCREW | 1 | $1.64 | |
| 19 | 6506-256 | BODY,FLOAT- ASSY | 1 | $98.95 | |
| 20 | 6505-998 | SCREW | 1 | $1.64 | |
| 21 | 6506-002 | PILOT JET 22.5 | 1 | $17.87 | |
| 21 | 6505-999 | PILOT JET 17.5 | 1 | $17.87 | |
| 21 | 6506-001 | PILOT JET 20 | 1 | $17.87 | |
| 21 | 6506-003 | PILOT JET 25 | 1 | $17.87 | |
| 21 | 6506-004 | PILOT JET-27.5 | 1 | $16.49 | |
| 21 | 6506-005 | PILOT JET-30 | 1 | $16.49 | |
| 22 | 6506-006 | RING | 1 | $15.11 | |
| 23 | 6506-007 | HOLDER, GUIDE | 1 | $33.95 | |
| 24 | 6506-008 | CAP, TOP | 1 | $85.95 | |
| 25 | 6506-009 | SPRING | 1 | $27.95 | |
| 26 | 6506-018 | GASKET,SLIDE VALVE COVER | 1 | $20.63 | |
| 27 | 6506-300 | R/B 6506-293 | 1 | $29.95 | |
| 27 | 6506-011 | JET NEEDLE-54 | 1 | $32.95 | |
| 27 | 6506-012 | JET NEEDLE-55 | 1 | $32.95 | |
| 27 | 6506-013 | JET NEEDLE-56 | 1 | $31.95 | |
| 28 | 6506-014 | HOLDER, GUIDE | 1 | $28.95 | |
| 29 | 6505-033 | SPRING,STARTER PLUNGER | 1 | $17.87 | |
| 31 | 6505-123 | JET MAIN 290 | 1 | $6.75 | |
| 32 | 6505-628 | E-RING | 1 | $3.44 | |
| 33 | 6505-243 | O-RING PLUG CARBURETOR | 1 | $4.95 | |
| 34 | 6506-254 | BOLT (DRAIN PLUG) | 1 | $53.95 | |
| 35 | 6506-251 | CLIP, HOSE | 1 | $6.34 | |
| 36 | 6506-252 | HOSE | 1 | $20.63 | |
| 37 | 6505-094 | PLATE,HOSE-CARBURETOR | 1 | $10.97 | |
| 38 | 6506-253 | HOSE | 1 | $20.63 | |
| 39 | 6506-091 | WASHER | 1 | $1.37 | |
| 41 | 6505-985 | SCREW | 1 | $3.95 | |
| 42 | 1670-463 | SHIELD,HEAT-CARB | 1 | $33.95 |
