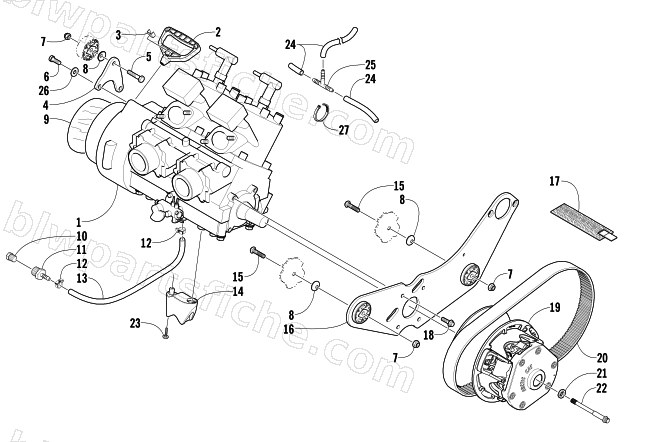

2002 Arctic Cat ZR 440 SNO PRO () — ENGINE AND RELATED PARTS
2002 ZR 440 SNO PRO ()
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0662-306 | ENGINE, 440 L/C-LAYDOWN (440L/C-ZRVB-02) | 1 | $3,786.95 | |
| 2 | 0636-363 | HANDLE,RECOIL-LARGE | 1 | $15.11 | |
| 3 | 0606-885 | CAP,RECOIL HANDLE | 1 | $1.37 | |
| 4 | 0608-362 | BRKT,ENG MTG-RH | 1 | $77.95 | |
| 5 | 8002-136 | SCREW,CAP-HH 5/16-18 X1.75 G5 Z&Y | 1 | $0.95 | |
| 6 | 8005-581 | SCREW, CAP-HSH 5/16-18X.875 Z&Y | 1 | $0.95 | |
| 7 | 8041-426 | NUT,HEX THIN LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 8 | 0623-987 | WASHER, BELLVILE-.312 X .930 | 1 | $2.19 | |
| 9 | 1670-328 | FOIL, PROTECTIVE-RECOIL COVER-DIE CUT | 1 | $16.49 | |
| 10 | 0670-243 | PLUG, GAS TANK-1/4 NPT | 1 | $1.92 | |
| 11 | 0623-801 | ADAPTER,FITTING-1/4-18 NPTF X 1/4 FHB | 1 | $13.73 | |
| 12 | 0124-045 | CLAMP,HOSE - .402/.449 DIA (SNP04) | 1 | $2.61 | |
| 13 | 0610-007 | HOSE, IMPULSE 3/16 25' | 1 | $102.95 | |
| 14 | 0608-380 | SNUBBER,BOTTOM OUT | 1 | $44.95 | |
| 15 | 1623-020 | BOLT,RIB CAR-5/16-18X1.62 | 1 | $20.63 | |
| 16 | 0708-429 | BRKT,ENG MTG-LH ASSY | 1 | $302.95 | |
| 17 | 0707-582 | RETAINER, DRIVE BELT-VELCRO | 1 | $17.87 | |
| 18 | 8408-820 | SCREW,CAP-HFH M8X1.25X20 CL8.8 Z&Y | 1 | $0.68 | |
| 19 | 0746-422 | CLUTCH,DRIVE-UNCAL-8.0" 30MM/D/NFP/440SP | 1 | $971.95 | |
| 20 | 0627-010 | BELT, DRIVE CVT-12.2 | 1 | $106.95 | |
| 21 | 0623-210 | WASHER, LOCK-1/2" HI-COLLAR | 1 | $0.68 | |
| 22 | 0623-804 | BOLT, CLUTCH-1/2-20X5-1/5-12 PT | 1 | $15.11 | |
| 23 | 1623-031 | R/B 2623-165 | 1 | $3.95 | |
| 24 | 0610-513 | HOSE,GASLINE-25' | 1 | $89.95 | |
| 25 | 1612-620 | FITTING,TEE-1/4 | 1 | $2.95 | |
| 26 | 8050-242 | WASHER,FLAT- 5/16 X .625 X .063 Z&Y | 1 | $2.06 | |
| 27 | 0123-811 | TIE,CABLE-4 INCH PLT1M | 1 | $0.26 |
