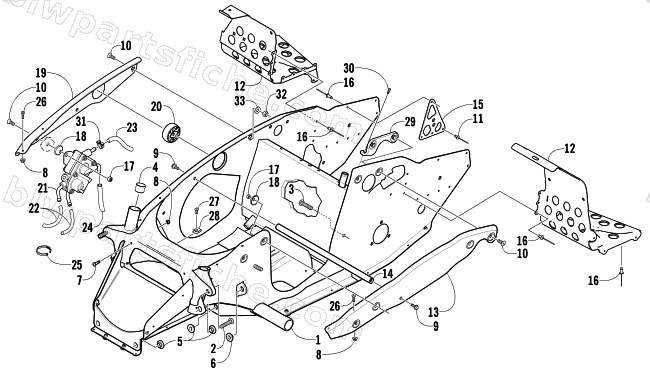

2002 Arctic Cat ZR 440 SNO PRO () — FRONT FRAME AND FOOTREST ASSEMBLY
2002 ZR 440 SNO PRO ()
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0707-637 | FRONT END-FABR | 1 | $1,717.95 | |
| 2 | 1623-019 | BOLT,RIB CAR-3/8-16X2.00 | 1 | $3.85 | |
| 3 | 1623-020 | BOLT,RIB CAR-5/16-18X1.62 | 1 | $20.63 | |
| 4 | 0675-161 | BEARING-14DU12 | 1 | $16.49 | |
| 5 | 0607-657 | BUSHING, LOWER- A-ARM | 1 | $2.47 | |
| 6 | 0607-656 | BUSHING, UPPER- A-ARM | 1 | $2.47 | |
| 7 | 0623-182 | SCREW,CAP-HSBH 10-32 X .875 | 1 | $0.26 | |
| 8 | 0123-430 | NUT,FLEX,LOCK 10-32 | 1 | $2.61 | |
| 9 | 8002-129 | SCREW,CAP-HH 5/16-18 X.625 G5 Z&Y | 1 | $1.50 | |
| 10 | 0623-962 | SCREW,MACH HSFH 1/4-20X.75 Z&Y | 1 | $1.09 | |
| 11 | 0623-341 | RIVET,3/16 MONOBOLT (.214/.437) | 1 | $1.23 | |
| 12 | 2606-334 | FOOTREST,RH | 1 | $128.95 | |
| 12 | 2606-335 | FOOTREST,LH | 1 | $147.95 | |
| 13 | 2606-855 | BRACE,SIDE PLATE-UPR LH | 1 | $77.95 | |
| 14 | 2606-695 | CROSSBRACE,SIDE PLATE | 1 | $61.95 | |
| 15 | 2706-142 | PLATE,BACKING-FRONT ARM-PTD BLK | 1 | $11.95 | |
| 16 | 0623-282 | RIVET,3/16 MONOBOLT | 1 | $0.95 | |
| 17 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 18 | 0623-943 | WASHER,SIDE PLATE BRACE | 1 | $30.95 | |
| 19 | 2606-595 | BRACE,SIDE PLATE - RH | 1 | $58.95 | |
| 20 | 0608-364 | MOUNT,ENGINE-45 DURO | 1 | $65.95 | |
| 21 | 1670-269 | PUMP, FUEL - LAYDOWN | 1 | $185.95 | |
| 22 | 0610-017 | HOSE,GAS 3/16 X100' | 1 | $232.95 | |
| 22 | 0610-008 | HOSE, GAS LINE-3/16X25' | 1 | $93.95 | |
| 23 | 0610-015 | HOSE,GAS 1/4 X100' | 1 | $231.59 | |
| 23 | 0610-016 | HOSE,GAS 1/4 X25' | 1 | $117.95 | |
| 24 | 0610-007 | HOSE, IMPULSE 3/16 25' | 1 | $102.95 | |
| 25 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 26 | 0623-739 | SCREW,HSFH- 10-32 X .687 (PLAIN) | 1 | $3.95 | |
| 27 | 0623-212 | SCREW,FLAT SOC/HD-1/4-20X9/16 | 1 | $3.95 | |
| 28 | 0623-757 | NUT,U 1/4-20 (SHORT .50) | 1 | $1.78 | |
| 29 | 2706-068 | BRACE,DROPCASE-W/AVK NUTS | 1 | $77.95 | |
| 29 | 2706-075 | BRACE,SIDE PLATE-LH-W/AVK NUTS | 1 | $68.95 | |
| 30 | 0623-506 | SCREW,COVER-MASTER CYLINDER | 1 | $1.78 | |
| 31 | 0124-045 | CLAMP,HOSE - .402/.449 DIA (SNP04) | 1 | $2.61 | |
| 32 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 33 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 |
