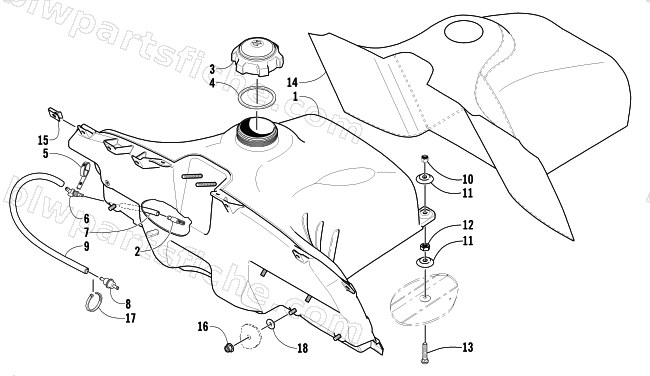

2002 Arctic Cat ZR 440 SNO PRO () — GAS TANK AND COVER
2002 ZR 440 SNO PRO ()
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 0510-358 | STRAINER,GAS TANK | 1 | $6.83 | |
| 3 | 1670-289 | CAP,VENTED-GAS | 1 | $86.95 | |
| 4 | 1670-228 | SEAL,GAS CAP | 1 | $26.95 | |
| 5 | 0670-289 | TAPE, TEFLON-ROLL | 1 | $6.34 | |
| 6 | 1670-321 | OUTLET, GAS TANK-5/16-45 DEG FITTING | 1 | $5.51 | |
| 7 | 0610-017 | HOSE,GAS 3/16 X100' | 1 | $232.95 | |
| 7 | 0610-008 | HOSE, GAS LINE-3/16X25' | 1 | $93.95 | |
| 8 | 2670-346 | FILTER,FUEL-INLINE-5/16 | 1 | $24.77 | |
| 9 | 0610-015 | HOSE,GAS 1/4 X100' | 1 | $231.59 | |
| 9 | 0610-016 | HOSE,GAS 1/4 X25' | 1 | $117.95 | |
| 10 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 11 | 0123-765 | WASHER,CUP .265X1.06 12 GA | 1 | $5.78 | |
| 12 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 13 | 8011-041 | BOLT,CRG 1/4-20X.875 GR1 Z&Y | 1 | $0.45 | |
| 14 | 1706-934 | COVER,GAS TANK | 1 | $76.95 | |
| 15 | 0623-427 | NUT,U-1/4X20 | 1 | $6.83 | |
| 16 | 1623-066 | NUT,FLANGE-1/4-20 TOPLOCK-GD 5 Z&Y | 1 | $0.95 | |
| 17 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 |
