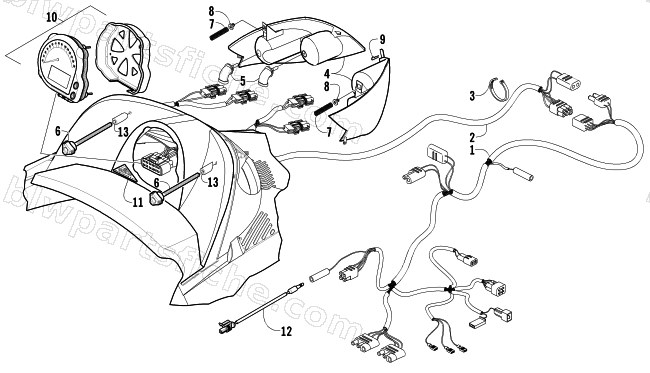

2002 Arctic Cat ZR 440 SNO PRO () — HEADLIGHT, INSTRUMENTS, AND WIRING ASSEMBLIES
2002 ZR 440 SNO PRO ()
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0686-741 | HARNESS,MAIN-2002 SNO PRO ZR | 1 | $291.95 | |
| 2 | 0686-742 | HARNESS,HOOD-2002 F2 | 1 | $174.95 | |
| 3 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 4 | 0609-530 | HEADLIGHT,RH-ASSY | 1 | $183.95 | |
| 4 | 0609-531 | HEADLIGHT,LH-ASSY | 1 | $183.95 | |
| 5 | 0609-251 | BULB, (GE 894)HEADLIGHT-HIGH BEAM | 1 | $29.95 | |
| 6 | 1623-024 | SCREW,ADJUSTMENT | 1 | $5.95 | |
| 7 | 0123-614 | SPRING,ADJUSTMENT | 1 | $1.92 | |
| 8 | 1623-025 | GROMMET,SCREW-PLASTIC | 1 | $0.95 | |
| 9 | 0623-847 | CLIP, HAIRPIN | 1 | $0.95 | |
| 10 | 0620-284 | SPEEDO/TACH-DIGITAL-W/FILTER | 1 | $743.95 | |
| 12 | 0686-655 | HARNESS,ADAPTER-TEMP SWITCH | 1 | $22.01 | |
| 13 | 2606-826 | SPACER,HEADLIGHT ADJ SCREW | 1 | $13.73 |
