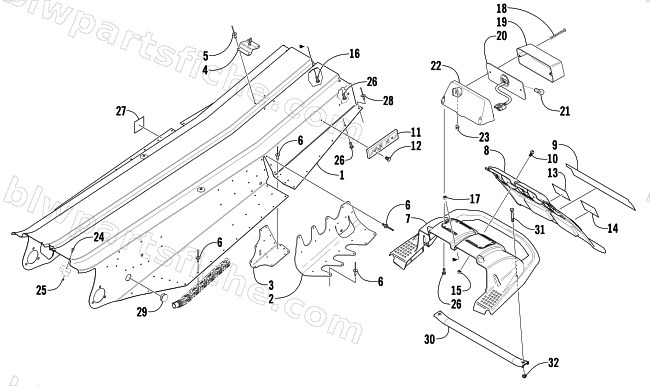

2002 Arctic Cat ZR 440 SNO PRO () — TUNNEL, REAR BUMPER, AND TAILLIGHT ASSEMBLIES
2002 ZR 440 SNO PRO ()
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1718-240 | TUNNEL,ASSY | 1 | $839.95 | |
| 2 | 2606-616 | BRKT,REAR SUSP MTG - RH | 1 | $169.95 | |
| 2 | 2606-617 | BRKT, REAR SUSP MTG - LH | 1 | $168.95 | |
| 3 | 2706-136 | PLATE,BACKING-REAR SUSP-RH-PTD BLK | 1 | $17.87 | |
| 3 | 2706-137 | PLATE,BACKING-REAR SUSP-LH-PTD BLK | 1 | $17.87 | |
| 4 | 1706-970 | PLATE,MTG-PTD BLK | 1 | $22.01 | |
| 5 | 0123-418 | RIVET, SOLID ALUM-.156 X.312 | 1 | $0.68 | |
| 6 | 0623-072 | RIVET,SOLID ALUM-156 X370 | 1 | $0.15 | |
| 6 | 0623-806 | RIVET, SOLID-.156 X.437-ALUM | 1 | $0.26 | |
| 6 | 8060-506 | RIVET,BLIND-DH SS54 BLK | 1 | $0.26 | |
| 7 | 3606-292 | BUMPER, RR-PLASTIC-BLACK | 1 | $275.95 | |
| 9 | 4611-712 | DECAL,SNOWFLAP | 1 | $36.95 | |
| 10 | 8017-579 | SCREW,MACH-TSTRH 1/4-20X.625 G2 Z&Y | 1 | $6.83 | |
| 11 | 0606-029 | REFLECTOR, RED | 1 | $13.73 | |
| 12 | 0623-269 | CLIP, CHRISTMAS TREE | 1 | $1.23 | |
| 13 | 1611-567 | DECAL,WARNING-TOWING(FRENCH) | 1 | $13.95 | |
| 14 | 1611-566 | DECAL,WARNING-TOWING(ENGLISH) | 1 | $13.73 | |
| 15 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 16 | 8017-577 | SCREW,MACH-TSTRH 1/4-20 X 1/2 GR2 Z&Y | 1 | $1.23 | |
| 18 | 0623-204 | SCREW, MACH - PHPNH, #10-32X2.5 BLK | 1 | $0.95 | |
| 19 | 0609-229 | LENS,TAILLIGHT | 1 | $32.95 | |
| 20 | 0609-230 | HOUSING,TAILLIGHT-W/SOCKET | 1 | $65.95 | |
| 21 | 0109-460 | BULB,STOP/TAILLAMP | 1 | $2.06 | |
| 22 | 0609-560 | HOUSING,TAILLIGHT-BLACK | 1 | $26.95 | |
| 23 | 1623-023 | NUT,SPEED-#10-32 U TYPE | 1 | $1.50 | |
| 24 | 8017-399 | SCREW,MACH-TSTRH 10-24X5/8 GR2 Z&Y | 1 | $1.37 | |
| 25 | 8040-246 | NUT,HEX LOCK-NYL 10-24 Z&Y | 1 | $0.26 | |
| 26 | 1623-022 | SCREW,48-2 TXSPNH 1/4-10X.625 Z&Y | 1 | $6.47 | |
| 27 | 0411-053 | DECAL,TUBE-CE | 1 | $100.95 | |
| 29 | 0616-044 | PLUG,HOLE-1.12 | 1 | $1.92 | |
| 30 | 2606-858 | BRACE,REAR BUMPER | 1 | $111.95 | |
| 31 | 8002-048 | SCREW,CAP-HH 1/4-20 X2.25 G5 Z&Y | 1 | $0.68 |
