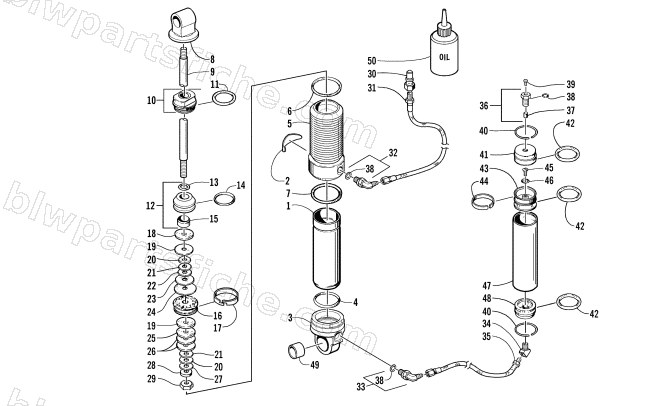

REAR SUSPENSION FRONT ARM SHOCK ABSORBER
2002 ZR 500 CC ()
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0704-741 | SHOCK, FRT ARM-ASSY | 1 | $547.95 | |
| 0 | 0704-712 | SHOCK, FRT ARM-EASY ADJUST | 1 | $1,242.95 | |
| 0 | 1639-770 | REBUILD KIT,A/C SHOCK (FRT ADJ SHOCK) | 1 | $85.95 | |
| 1 | 1604-394 | BODY, SHOCK - 1.625X5.580 | 1 | $116.95 | |
| 1 | 1604-827 | BODY,SHOCK - 1.625 X 5.590 | 1 | $394.95 | |
| 2 | 1604-294 | END CAP, SHOCK - W/LUGS | 1 | $141.95 | |
| 3 | 1604-280 | O-RING,END CAP | 1 | $3.02 | |
| 3 | 1604-524 | END CAP, SHOCK, EASY ADJ. | 1 | $125.95 | |
| 5 | 1604-796 | EYELET, SHOCK - .630 DIA X .950 LGTH | 1 | $28.95 | |
| 5 | 1604-828 | SLEEVE,EASY ADJUST - 5.500 | 1 | $286.95 | |
| 6 | 1604-528 | O-RING, ADJUSTER, BOTTOM | 1 | $1.50 | |
| 7 | 0704-386 | ENDCAP - ASSY | 1 | $94.95 | |
| 7 | 1604-529 | O-RING, ADJUSTER, TOP | 1 | $1.64 | |
| 8 | 1604-271 | O-RING,OUTER | 1 | $2.47 | |
| 9 | 1604-272 | WASHER, TOP OUT -1.125 x .094 | 1 | $1.37 | |
| 9 | 1604-545 | ROD,SHOCK-6.670(MELONITE) | 1 | $127.95 | |
| 10 | 0603-952 | PISTON, 0.059 ORIFICE | 1 | $25.95 | |
| 10 | 0704-601 | END CAP ASSEMBLY, WIDE FLANGE | 1 | $120.95 | |
| 11 | 1604-274 | STRAP, PISTON - TEFLON | 1 | $24.77 | |
| 12 | 2603-137 | VALVE,SHOCK-1.300 DIA X .015 | 1 | $5.95 | |
| 12 | 0704-998 | PISTON, SEPARATOR-LG O-RING ASSY | 1 | $145.95 | |
| 13 | 2603-096 | VALVE,SHOCK-1.100 DIA X .012 | 1 | $5.95 | |
| 13 | 1604-527 | O-RING, INNER, SEPERATOR PISTON | 1 | $3.30 | |
| 14 | 2603-076 | VALVE,SHOCK-1.000 DIA X .012 | 1 | $5.95 | |
| 14 | 2604-152 | O-RING,FLOATING PISTON | 1 | $2.88 | |
| 15 | 2603-065 | VALVE,SHOCK- .900 DIA X .010 | 1 | $5.95 | |
| 16 | 2603-055 | VALVE,SHOCK- .800 DIA X .010 | 1 | $5.95 | |
| 17 | 2603-125 | VALVE,SHOCK-1.250 DIA X .010 | 1 | $5.51 | |
| 18 | 2603-095 | VALVE,SHOCK-1.100 DIA X .010 | 1 | $5.95 | |
| 19 | 2603-075 | VALVE,SHOCK-1.000 DIA X .010 | 1 | $5.95 | |
| 20 | 1604-273 | WASHER, BACKUP - .620 x .094 | 1 | $1.95 | |
| 21 | 0623-696 | NUT, FLEX - 3/8-24 UNF Z&Y | 1 | $2.95 | |
| 22 | 2604-816 | PISTON,FLOATING-ASSY | 1 | $116.95 | |
| 23 | 1604-278 | STRAP, FLOATING PISTON - TEFLON | 1 | $24.77 | |
| 24 | 1604-277 | O-RING, FLOATING PISTON | 1 | $4.54 | |
| 24 | 2603-136 | VALVE,SHOCK-1.300 DIA X .012 | 1 | $5.95 | |
| 25 | 0623-697 | SCREW, MACH - HSFH 10-24X3/8 BLK | 1 | $0.25 | |
| 26 | 0423-182 | O-RING,-008 (3/16X5/16X1/16) | 1 | $1.23 | |
| 27 | 0704-383 | VALVE, PRESSURE - ASSY | 1 | $14.95 | |
| 27 | 1603-045 | VALVE,SHOCK- .700 DIA X .010 | 1 | $4.68 | |
| 28 | 1604-284 | O-RING, PRESSURE VALVE | 1 | $1.95 | |
| 29 | 0624-433 | SCREW, MACH - HSBH 8-32X1/4 SS | 1 | $0.68 | |
| 30 | 3611-007 | DECAL,SHOCK-WARNING | 1 | $12.35 | |
| 30 | 1604-536 | HYDRAULIC COUPLER, FEMALE THREAD | 1 | $56.95 | |
| 31 | 1604-791 | BUSHING,SHOCK-.890ID X .800 | 1 | $15.11 | |
| 31 | 1604-530 | HOSE, Q D NIPPLE TO SHOCK, 30IN. | 1 | $128.95 | |
| 32 | 4639-366 | S/M SHOCK OIL-1 QUART | 1 | $21.95 | |
| 32 | 1604-552 | FITTING,HOSE-MODIFIED-90 DEG X FJIC | 1 | $66.95 | |
| 33 | 0603-960 | NUT, SPRING ADJUSTER | 1 | $3.95 | |
| 33 | 1604-533 | ELBOW,90 DEG-7/16-20X7/16 W/FLARE | 1 | $37.95 | |
| 34 | 1604-534 | 45DEG. STRAIGHT THREAD ELBOW, FLARE TUBE | 1 | $14.95 | |
| 35 | 1604-532 | HOSE, RESERVOIR TO SHOCK. 16IN. | 1 | $66.95 | |
| 40 | 1604-525 | CIRCLIP,RESERVOIR.063 DIA.X 1.42 ID | 1 | $6.95 | |
| 41 | 1604-520 | ENDCAP,EASY ADJ RES-7/16-20 UNF | 1 | $28.95 | |
| 47 | 1604-554 | BODY, RESERVOIR-1.625 X 5.000 (MELONITE) | 1 | $313.95 | |
| 48 | 1604-535 | ENDCAP, RESERVOIR | 1 | $28.95 |
