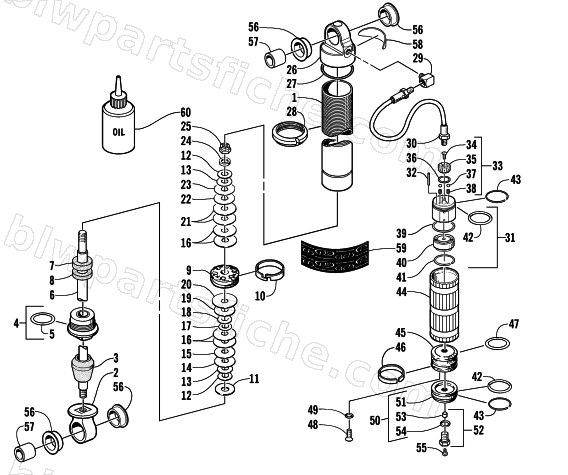

FRONT SUSPENSION SHOCK ABSORBER
2002 ZR 500 LE
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0703-824 | SHOCK,SKI-CLICKER-RH | 1 | $1,069.95 | |
| 0 | 0703-825 | SHOCK,SKI-CLICKER-LH | 1 | $1,240.95 | |
| 1 | 1603-308 | BODY,SHOCK-8.900(MELONITE) | 1 | $443.95 | |
| 2 | 0603-910 | EYELET,SHOCK-FR SUSP(FOX ONLY) | 1 | $97.95 | |
| 3 | 1603-405 | BUMPER,JOUNCE-BASF 415135-002 | 1 | $28.95 | |
| 4 | 0704-382 | END CAP, LONG - ASSY | 1 | $56.95 | |
| 5 | 1604-271 | O-RING,OUTER | 1 | $2.47 | |
| 6 | 2603-607 | SHAFT,FLOAT-.498 OD X 9.850 | 1 | $149.95 | |
| 7 | 1604-511 | SPACER,SHAFT-.530ID X .75 OD X .25 | 1 | $22.95 | |
| 8 | 1604-364 | SPACER, SHAFT (.530 ID X .75 OD X .375) | 1 | $6.95 | |
| 9 | 1603-875 | PISTON, .081 ORIFICE | 1 | $125.95 | |
| 10 | 1604-274 | STRAP, PISTON - TEFLON | 1 | $24.77 | |
| 11 | 1604-272 | WASHER, TOP OUT -1.125 x .094 | 1 | $1.37 | |
| 12 | 1603-055 | VALVE,SHOCK- .800 DIA X .010 | 1 | $4.40 | |
| 13 | 1603-065 | VALVE,SHOCK- .900 DIA X .010 | 1 | $4.13 | |
| 14 | 2603-074 | VALVE,SHOCK-1.000 DIA X .008 | 1 | $5.95 | |
| 15 | 1603-094 | VALVE,SHOCK-1.100 DIA X .008 | 1 | $5.51 | |
| 16 | 1603-122 | VALVE,SHOCK-1.250 DIA X .006 | 1 | $4.82 | |
| 17 | 2603-044 | VALVE,SHOCK- .700 DIA X .008 | 1 | $5.95 | |
| 18 | 1603-062 | VALVE,SHOCK-.900 DIA X .006 | 1 | $13.73 | |
| 19 | 1603-092 | VALVE,SHOCK-1.100 DIA X .006 | 1 | $7.95 | |
| 20 | 1603-132 | VALVE,SHOCK-1.300 DIA X .006 | 1 | $4.13 | |
| 21 | 2603-124 | VALVE,SHOCK-1.250 DIA X .008 | 1 | $5.95 | |
| 22 | 2603-095 | VALVE,SHOCK-1.100 DIA X .010 | 1 | $5.95 | |
| 23 | 2603-075 | VALVE,SHOCK-1.000 DIA X .010 | 1 | $5.95 | |
| 24 | 1604-273 | WASHER, BACKUP - .620 x .094 | 1 | $1.95 | |
| 25 | 0623-696 | NUT, FLEX - 3/8-24 UNF Z&Y | 1 | $2.95 | |
| 26 | 1603-959 | END CAP,SHOCK-CLICKER | 1 | $71.95 | |
| 27 | 1604-280 | O-RING,END CAP | 1 | $3.02 | |
| 28 | 0603-960 | NUT, SPRING ADJUSTER | 1 | $3.95 | |
| 29 | 0603-964 | ELBOW, HOSE FITTING - BRASS | 1 | $18.95 | |
| 31 | 1604-728 | END CAP,RESERVOIR-1/8-27 NPT | 1 | $40.95 | |
| 32 | 1603-406 | PIN,INDICATOR-KNOB | 1 | $3.44 | |
| 33 | 1703-001 | KNOB, ADJUSTER - ASSEMBLY | 1 | $52.95 | |
| 36 | 0603-975 | RING, .070 X .801 | 1 | $0.65 | |
| 37 | 0603-974 | BALL , DETENT-.1875 DIA | 1 | $0.45 | |
| 38 | 0603-973 | SPRING, DETENT-.022 X .190 X .25 LONG | 1 | $3.57 | |
| 39 | 0603-970 | O-RING - .103 X 1.362 | 1 | $1.92 | |
| 40 | 0703-542 | OIL RELIEF,2 PORT- ASSY | 1 | $117.95 | |
| 41 | 0603-984 | CIRCLIP, VALVE BODY - .063 DIA X 1.38 ID | 1 | $6.95 | |
| 42 | 0603-968 | O-RING - .139 X 1.484 | 1 | $2.75 | |
| 43 | 0603-985 | CIRCLIP,RESERVOIR - .063 DIA X 1.77 ID | 1 | $1.95 | |
| 44 | 1603-315 | BODY,RESERVOIR-4.75" GROOVED | 1 | $74.95 | |
| 45 | 0603-986 | PISTON, FLOATING - RESERVIOR | 1 | $79.95 | |
| 46 | 0603-988 | STRAP, PISTON - FLOATING - TEFLON | 1 | $34.95 | |
| 47 | 0603-987 | O-RING - .210 X 1.350 | 1 | $8.21 | |
| 48 | 0623-697 | SCREW, MACH - HSFH 10-24X3/8 BLK | 1 | $0.25 | |
| 49 | 0423-182 | O-RING,-008 (3/16X5/16X1/16) | 1 | $1.23 | |
| 50 | 0703-540 | END CAP, RESERVOIR,ASSY | 1 | $56.95 | |
| 51 | 0603-989 | ENDCAP, RESERVOIR | 1 | $114.95 | |
| 52 | 0704-383 | VALVE, PRESSURE - ASSY | 1 | $14.95 | |
| 54 | 1604-284 | O-RING, PRESSURE VALVE | 1 | $1.95 | |
| 55 | 0624-433 | SCREW, MACH - HSBH 8-32X1/4 SS | 1 | $0.68 | |
| 56 | 0603-955 | BUSHING, SKI SHOCK-.045" LIP | 1 | $9.59 | |
| 57 | 1603-209 | SLEEVE, EYELET - INNER - .790 TLG | 1 | $1.23 | |
| 58 | 3611-007 | DECAL,SHOCK-WARNING | 1 | $12.35 | |
| 59 | 4611-332 | DECAL,SHOCK-2002-ACT-2.3"X5" | 1 | $36.95 | |
| 60 | 4639-366 | S/M SHOCK OIL-1 QUART | 1 | $21.95 |
