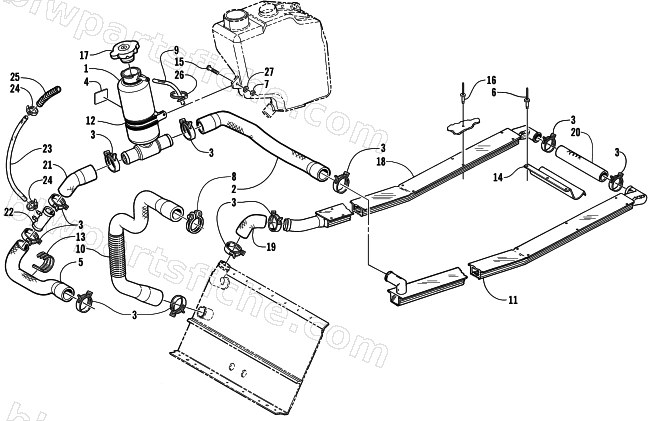

COOLING ASSEMBLY
2002 ZR 600 EFI
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1606-396 | TANK,COOLANT-'ZR' STYLE | 1 | $41.95 | |
| 2 | 0610-379 | HOSE,COOLANT-LH EXCH. TO TANK | 1 | $41.95 | |
| 4 | 2611-758 | DECAL,FILL LEVEL-COOLANT TANK | 1 | $11.95 | |
| 5 | 0610-386 | HOSE,COOLANT-PUMP TO TEE | 1 | $42.95 | |
| 6 | 8060-504 | RIVET,BLIND-DH SS53 BLK | 1 | $0.26 | |
| 7 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 8 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 9 | 0610-015 | HOSE,GAS 1/4 X100' | 1 | $231.59 | |
| 9 | 0610-016 | HOSE,GAS 1/4 X25' | 1 | $117.95 | |
| 10 | 0610-418 | HOSE, COOLANT-ENG TO EXCH-W/PROTECTOR | 1 | $59.79 | |
| 11 | 0716-921 | HEAT EXCH,LH-WELD'T(99 ZR PROD) | 1 | $272.95 | |
| 12 | 0623-761 | CLAMP,COOLANT TANK | 1 | $6.89 | |
| 13 | 0623-540 | TIE, CABLE-TRIPLE | 1 | $1.78 | |
| 14 | 0616-810 | GUARD,COOLANT HOSE | 1 | $20.95 | |
| 15 | 8017-580 | SCREW,MACH-TSTRH 1/4-20 X 3/4 GR2 Z&Y | 1 | $2.06 | |
| 16 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 | |
| 17 | 0606-268 | CAP,MINI RADIATOR-13LBS | 1 | $24.77 | |
| 18 | 0716-920 | HEAT EXCHANGER - WELD'T - RH | 1 | $189.95 | |
| 19 | 0610-244 | HOSE,COOLANT-FRONT EXCH.TO RH EXCH. | 1 | $26.95 | |
| 20 | 0610-215 | HOSE,COOLANT-REAR EXCH | 1 | $30.95 | |
| 21 | 0610-192 | HOSE,FRONT EXCHANGER TO TEE | 1 | $38.95 | |
| 22 | 0616-065 | DOUBLE T FITTING,ONE OPENING | 1 | $11.95 | |
| 23 | 0610-076 | HOSE, WATER-10 FT {0619-124} | 1 | $65.95 | |
| 24 | 0623-373 | CLAMP,HOSE #4 {6202} | 1 | $2.88 | |
| 25 | 0610-082 | COVER,HOSE-INNER BALANCE HOSE | 1 | $2.95 | |
| 26 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 |
