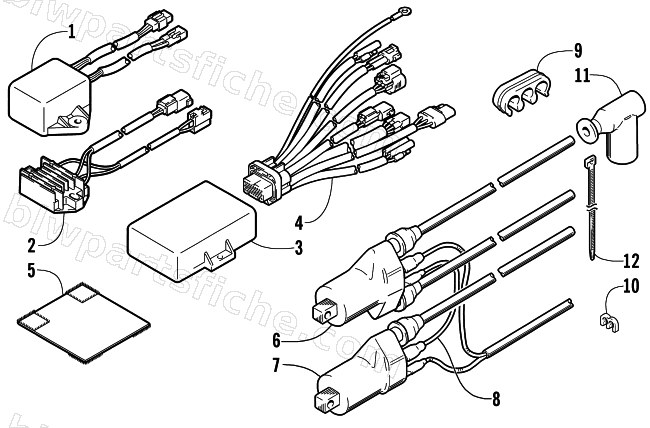

2002 Arctic Cat ZRT 600 — ELECTRICAL
2002 ZRT 600
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3005-668 | CONDENSOR,EXHAUST VALVE | 1 | $326.95 | |
| 2 | 3005-732 | REGULATOR, EXHAUST VALVE | 1 | $517.95 | |
| 3 | 3006-049 | BOX,CDI 02 600 L/CX3 | 1 | $1,479.95 | |
| 4 | 3005-843 | HARNESS, CDI BOX | 1 | $457.95 | |
| 5 | 3003-474 | COVER, CONNECTOR 88 650 WILDCAT | 1 | $20.95 | |
| 6 | 3004-483 | COIL ASSY,IGNITION | 1 | $335.95 | |
| 7 | 3005-844 | COIL, IGNITION | 1 | $343.95 | |
| 8 | 3004-192 | LEAD WIRE, IGNITION COIL | 1 | $22.01 | |
| 9 | 3005-389 | CLIP | 1 | $7.95 | |
| 10 | 3005-598 | CLAMP | 1 | $7.95 | |
| 11 | 3006-367 | CAP, SPARK PLUG-NGK TB05EMD | 1 | $24.77 | |
| 12 | 3008-044 | CLAMP, L:125,M14 | 1 | $2.69 |
