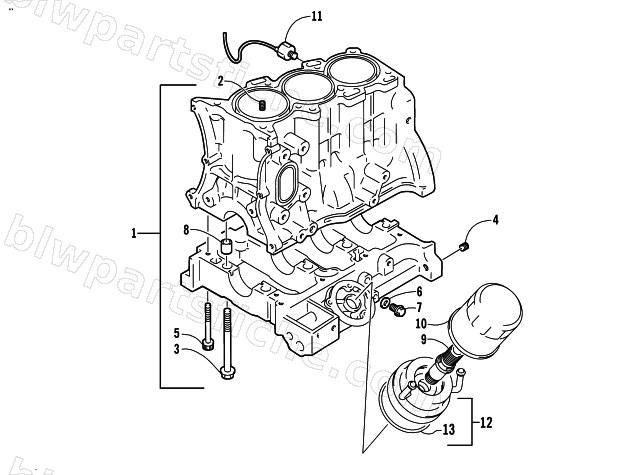

CYLINDER BLOCK/BASE ASSEMBLY
2003 4-STROKE TOURING
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0762-287 | ASSY KIT,CYLINDER BLOCK | 1 | $2,961.95 | |
| 2 | 3006-131 | PLUG,OIL VENTURI '02 660 L/C | 1 | $17.87 | |
| 3 | 3006-133 | BOLT, '02 660 L/C | 1 | $13.73 | |
| 4 | 3006-116 | PLUG, '02 660 L/C | 1 | $18.95 | |
| 5 | 3006-141 | BOLT, '02 660 L/C | 1 | $13.73 | |
| 6 | 3006-112 | GASKET 02 660 L/C | 1 | $9.59 | |
| 7 | 3006-117 | PLUG, '02 660 L/C | 1 | $12.35 | |
| 8 | 3423-088 | PIN, CYLINDER HEAD KNOCK(ALIGMENT) | 1 | $4.54 | |
| 9 | 3006-564 | STAND,OIL FILTER | 1 | $47.95 | |
| 10 | 3005-948 | FILTER, OIL | 1 | $27.95 | |
| 11 | 3006-886 | SENSOR ASS'Y,KNOCK | 1 | $357.95 | |
| 12 | 3006-565 | COOLER ASSY,OIL | 1 | $861.95 | |
| 13 | 3006-566 | GASKET-660 L/C | 1 | $26.95 |
