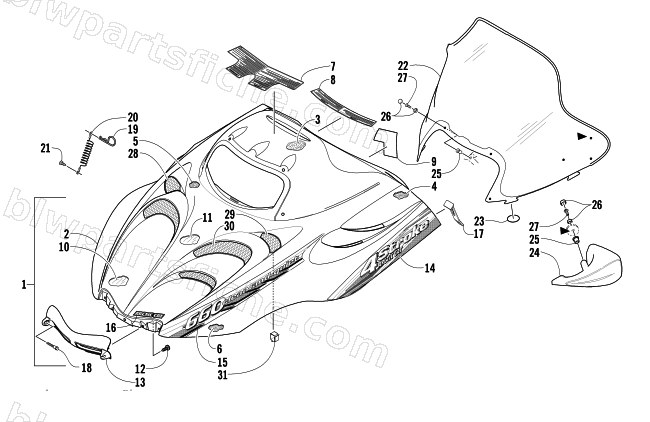

2003 Arctic Cat 4-STROKE TOURING — HOOD AND WINDSHIELD ASSEMBLY
2003 4-STROKE TOURING
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1718-244 | HOOD, W/ DECALS-03 4 STROKE | 1 | $1,201.95 | |
| 2 | 1718-275 | HOOD, W/O DECALS- 03 4 STROKE | 1 | $967.95 | |
| 3 | 0717-166 | FOAM, HOOD- MIDDLE UPR RH | 1 | $11.95 | |
| 4 | 0717-140 | FOAM, HOOD-REAR RH-00 ZR | 1 | $13.95 | |
| 4 | 0717-141 | FOAM, HOOD-REAR LH-00 ZR | 1 | $12.95 | |
| 5 | 0717-138 | FOAM, HOOD-MIDDLE-00 ZR | 1 | $5.95 | |
| 6 | 0717-146 | FOAM, HOOD-UPR RH | 1 | $14.95 | |
| 6 | 0717-147 | FOAM, HOOD-UPR LH | 1 | $14.95 | |
| 7 | 3611-485 | DECAL, WARNING-GENL & BRAKE-ENG & FRNCH | 1 | $35.95 | |
| 8 | 3611-970 | DECAL, CAUTION-ENG/BTRY/FUEL-ENG &FRCH | 1 | $41.95 | |
| 9 | 3611-580 | DECAL,REVERSE | 1 | $25.95 | |
| 10 | 1606-938 | FOIL,HOOD-RH | 1 | $54.95 | |
| 10 | 1606-939 | FOIL, HOOD-LH | 1 | $75.95 | |
| 11 | 2606-935 | FOIL, PROTECTIVE-4 STROKE HOOD | 1 | $17.87 | |
| 12 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 13 | 2606-454 | HINGE, HOOD-GRAY-INJ MOLD | 1 | $73.95 | |
| 14 | 4611-792 | DECAL, HOOD-LWR-RH | 1 | $102.95 | |
| 14 | 4611-793 | DECAL, HOOD-LWR-LH | 1 | $102.95 | |
| 15 | 4611-794 | DECAL, HOOD-FRT-RH | 1 | $66.95 | |
| 15 | 4611-795 | DECAL, HOOD-FRT-LH | 1 | $63.95 | |
| 16 | 4611-799 | DECAL,NOSE- ARCTIC CAT RED | 1 | $16.95 | |
| 17 | 1606-067 | STRAP, HOLDDOWN- HOOD | 1 | $12.35 | |
| 18 | 0623-690 | SCREW,HDHS-1/4-20X1.240 Z&Y | 1 | $24.77 | |
| 20 | 1606-158 | CABLE HOOD 35.0" | 1 | $15.11 | |
| 22 | 2606-366 | WINDSHIELD, MED-W/MIRROR HOLES | 1 | $200.95 | |
| 23 | 0616-032 | O-RING-WINDSHIELD (1 I.D.) | 1 | $1.78 | |
| 25 | 0623-845 | NUT, EXP,10-32 | 1 | $2.47 | |
| 26 | 0124-054 | SNAP CAP W/WASHER | 1 | $1.23 | |
| 27 | 0623-902 | SCREW, MACH-PHTRH-10-32X5/8-ZY | 1 | $0.95 | |
| 28 | 2706-194 | SCREEN,VENT-HOOD-R/H-PTD PLATINUM | 1 | $39.95 | |
| 29 | 2706-195 | SCREEN,VENT-HOOD-LH-UPPER-PTD PLATINUM | 1 | $17.95 | |
| 30 | 2606-325 | SCREEN, VENT HOOD-LH-CTR/SLV | 1 | $64.95 | |
| 31 | 0123-394 | CLIP CABLE | 1 | $1.37 |
