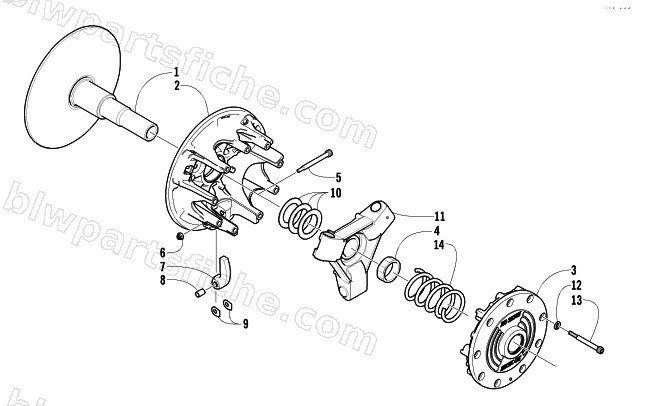

DRIVE CLUTCH
2003 4-STROKE TOURING ()
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0746-278 | KIT,DRIVE CLUTCH-UNCAL-8.25 30MM/D | 1 | $825.95 | |
| 0 | 1639-030 | KIT, CAM ARM REPAIR- W/O ARMS | 1 | $81.95 | |
| 1 | 0646-365 | SHEAVE, STATIONARY-MACH | 1 | $288.95 | |
| 3 | 0746-086 | COVER ASSY - DRIVE CLUTCH | 1 | $116.95 | |
| 4 | 0646-140 | NUT,JAM-SPIDER | 1 | $17.95 | |
| 5 | 0646-295 | PIN, CAM-ARM | 1 | $15.11 | |
| 6 | 0623-392 | NUT,FLEX LOCK 10-24 | 1 | $1.50 | |
| 7 | 0746-646 | ARM, CAM W/ BRG-57.0 GRAM | 1 | $16.95 | |
| 7 | 0746-645 | ARM, CAM W/ BRG-52.0 GRAM | 1 | $26.95 | |
| 7 | 0746-647 | ARM, CAM W/ BRG-49.0 GRAM | 1 | $50.95 | |
| 8 | 0646-160 | BEARING,CAM ARM | 1 | $15.11 | |
| 9 | 0646-101 | WASHER,STEEL-CLUTCH | 1 | $0.95 | |
| 10 | 0646-266 | WASHER,SPACER-CLUTCH (.030) | 1 | $1.23 | |
| 10 | 0646-196 | SPACER,CLUTCH-SPIDER | 1 | $26.95 | |
| 11 | 0746-115 | SPIDER-ASSY-MACH | 1 | $354.95 | |
| 12 | 8051-212 | WASHER,SPR LOCK-1/4 .252X.487X.062 Z&Y | 1 | $0.12 | |
| 13 | 0623-596 | SCREW,MACH-TSH 1/4X2.50 Z&Y | 1 | $4.95 | |
| 14 | 0646-367 | SPRING, COMPRESSION-160# | 1 | $57.95 |
