Home Snowmobile 2003 4-STROKE TOURING () HEADLIGHT, INSTRUMENTS, AND WIRING ASSEMBLIES

HEADLIGHT, INSTRUMENTS, AND WIRING ASSEMBLIES

2003 4-STROKE TOURING ()

Scroll / pinch to zoom · drag to pan · double-click resets

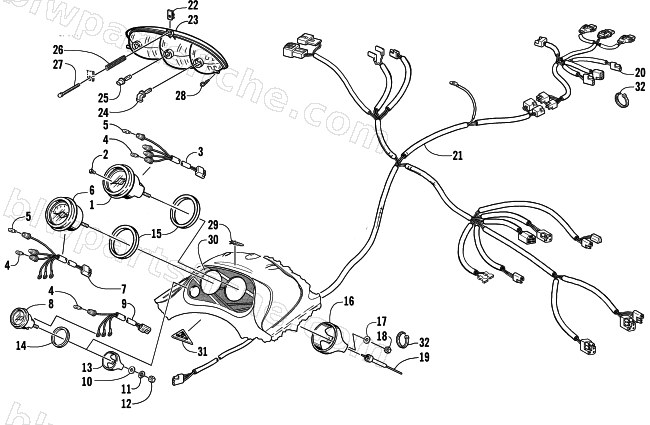

HEADLIGHT, INSTRUMENTS, AND WIRING ASSEMBLIES diagram
# Part No. Description Qty Price
1 0620-265 SPEEDOMETER, 100 MPH-SMC OIL SENSOR 1 $353.95
1 0620-271 SPEEDO,SMC OIL SENSOR-METRIC-OS-4STROKE 1 $236.95
2 0620-073 KNOB,TRIPMETER 1 $15.11
3 0620-266 HARNESS, SPEEDOMETER-OIL SENSOR 1 $163.95
4 0620-149 BULB,T-10 WEDGE BASE-12V 1.7W 1 $4.95
5 0230-020 BULB, T-10 WEDGE BASE-12 V 3.4W 1 $3.16
6 0620-259 TACHOMETER,DC-3W 660 EFI 1 $643.95
8 0620-270 GAUGE, FUEL-2" 100 OHM DC-N.S. 1 $181.95
9 0620-275 HARNESS, FUEL GAUGE 1 $144.95
10 8050-122 WASHER,FLAT- #8 X .438 X .049 Z&Y 1 $3.85
11 8051-122 WASHER,SPR LOCK-#8 .167X.293X.040 Z&Y 1 $0.55
12 0623-839 NUT, HEX - M4 X 0.7 Z&Y 1 $0.40
13 0620-138 BACKCLAMP, FUEL GAUGE 1 $16.49
14 0620-139 RING, RUBBER CUSHION-FUEL GAUGE 1 $3.85
15 0620-135 RING, RUBBER CUSHION-TACH/SPEEDO 1 $3.57
16 0620-134 BACKCLAMP, TACH/SPEEDO 1 $17.95
17 8050-212 WASHER,FLAT- 1/4 X .500 X .063 Z&Y 1 $0.68
18 0623-038 NUT,HEX M6 Z&Y-SEMS (W/WASHER) 1 $0.26
19 0620-269 CABLE, SPEEDOMETER-96" 1 $68.95
20 0686-850 HARNESS, MAIN-03 4 STROKE TOUR 1 $371.95
21 0686-870 HARNESS, HOOD-4-STROKE TOURING 1 $198.95
22 0623-757 NUT,U 1/4-20 (SHORT .50) 1 $1.78
23 0609-250 REFLECTOR/LENS,HEADLIGHT(0609-249) 1 $183.95
24 0609-251 BULB, (GE 894)HEADLIGHT-HIGH BEAM 1 $29.95
25 0609-252 BULB, (GE 885)HEADLIGHT-LOW BEAM 1 $31.95
26 0623-466 SPRING,ADJUSTMENT-HEADLIGHT 1 $5.78
27 0623-467 SCREW,THUMB-1/4X20X3.5 1 $15.11
28 0623-847 CLIP, HAIRPIN 1 $0.95
29 3611-581 DECAL, "ESR" 1 $23.95
30 4611-791 DECAL, HOOD-CONSOLE 1 $44.95
32 0123-788 TIE,CABLE-8.5/7.5/7.4 1 $0.12
