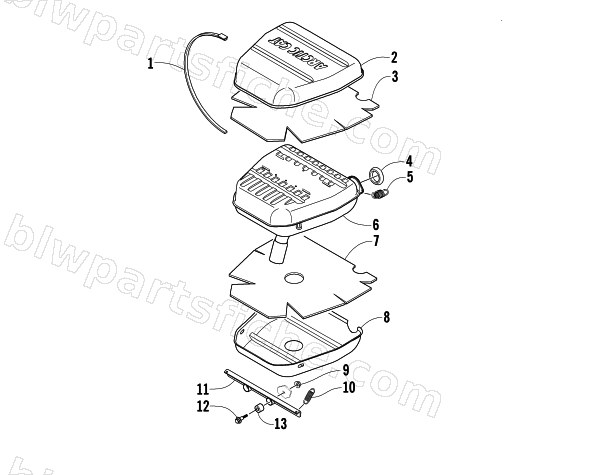

EXHAUST ASSEMBLY
2003 4-STROKE TRAIL
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1612-645 | TIE, SS BAND-33" | 1 | $39.95 | |
| 1 | 1612-634 | TIE, SS BAND-42" | 1 | $45.95 | |
| 2 | 1612-630 | WRAP, TOP | 1 | $113.95 | |
| 3 | 1612-628 | PACKING, TOP HEAT SHIELD | 1 | $46.95 | |
| 4 | 0612-693 | GASKET,EXHAUST JOINT-RESONATOR | 1 | $29.95 | |
| 5 | 2612-399 | SPRING,EXTENSION | 1 | $3.71 | |
| 7 | 1612-629 | PACKING,BOTTOM HEAT SHIELD | 1 | $13.95 | |
| 8 | 1612-631 | WRAP, BOTTOM | 1 | $104.95 | |
| 9 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 10 | 0123-321 | SPRING,EXTENSION | 1 | $5.51 | |
| 11 | 0712-859 | BRKT, MTG-MUFFLER-PTD BLK | 1 | $50.95 | |
| 12 | 0623-856 | SCREW, HEX HEAD SHOULDER-1/4-20 | 1 | $5.95 | |
| 13 | 0612-107 | BUSHING,RESONATOR MTG | 1 | $12.95 |
