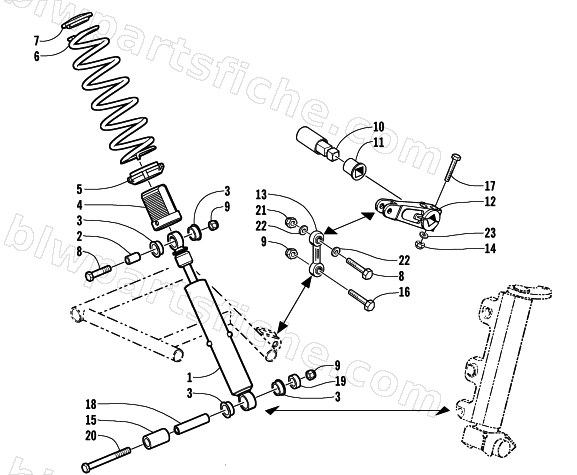

SHOCK ABSORBER AND SWAY BAR ASSEMBLY
2003 4-STROKE TRAIL
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1603-175 | SHOCK,SKI | 1 | $252.95 | |
| 2 | 0604-309 | SLEEVE,SHOCK ABSORBER | 1 | $2.33 | |
| 3 | 0604-310 | BUSHING,SHOCK ABSORBER | 1 | $6.75 | |
| 4 | 0603-147 | SLEEVE,THREADED-SHOCK | 1 | $60.95 | |
| 5 | 0603-259 | NUT,RETAINER-SPRING | 1 | $5.65 | |
| 6 | 0703-872 | SPRING, SKI -PLATINUM | 1 | $65.95 | |
| 7 | 1603-889 | RETAINER, SPRING | 1 | $12.35 | |
| 9 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 10 | 0703-202 | SWAY BAR, 7/16-PAINTED | 1 | $108.95 | |
| 11 | 0603-151 | BEARING,SWAY BAR-SQUARE | 1 | $23.39 | |
| 12 | 0603-917 | ARM, SWAY BAR-PLASTIC | 1 | $70.95 | |
| 13 | 1603-414 | LINK, SWAY BAR, FIXED (PLASTIC) | 1 | $37.95 | |
| 14 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 15 | 0603-854 | SPACER, SHOCK MTG - FRT | 1 | $13.73 | |
| 16 | 8002-225 | SCREW,CAP-HH 3/8-16 X1.50 G5 Z&Y | 1 | $0.95 | |
| 17 | 8002-137 | SCREW,CAP-HH 5/16-18 X2.00 G5 Z&Y | 1 | $1.09 | |
| 18 | 1604-184 | SLEEVE, SHOCK ABSORBER | 1 | $42.95 | |
| 19 | 0603-855 | SPACER, SHOCK MTG - REAR | 1 | $3.99 | |
| 20 | 8002-234 | SCREW,CAP-HH 3/8-16 X4.00 G5 Z&Y | 1 | $1.50 | |
| 21 | 8041-486 | NUT,HEX THIN LOCK-NYL 3/8-16 Z&Y | 1 | $0.40 | |
| 22 | 8050-272 | WASHER,FLAT- 3/8 X .734 X .063 Z&Y | 1 | $0.26 | |
| 23 | 8050-242 | WASHER,FLAT- 5/16 X .625 X .063 Z&Y | 1 | $2.06 |
