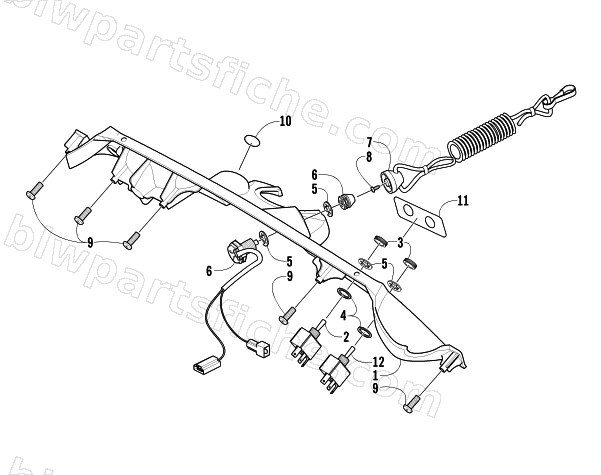

2003 Arctic Cat 440 SNO PRO L/C — CONSOLE AND SWITCH ASSEMBLY
2003 440 SNO PRO L/C
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2606-960 | CONSOLE,CARB-PRO 440 | 1 | $68.95 | |
| 2 | 0609-233 | SWITCH,HIGH/LOW BEAM | 1 | $25.95 | |
| 3 | 0609-220 | NUT,KNURLED-BLACK (BRASS) | 1 | $1.95 | |
| 4 | 0623-153 | WASHER,NYLON 1/2X5/8-.030 | 1 | $2.95 | |
| 5 | 0123-985 | WASHER,INT LOCK .472 | 1 | $2.88 | |
| 6 | 0709-071 | TETHER SWITCH-ASSY(OPEN) | 1 | $92.95 | |
| 7 | 0709-055 | TETHER CORD W/ SCREW | 1 | $34.95 | |
| 9 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 10 | 5611-556 | DECAL,CONSOLE-110 OCTANE FUEL ONLY | 1 | $20.95 | |
| 11 | 5611-198 | DECAL,TOGGLE SWITCH | 1 | $20.95 | |
| 12 | 0609-187 | SWITCH,TOGGLE-DPDT (THUMB/HAND WARMER) | 1 | $33.95 |
