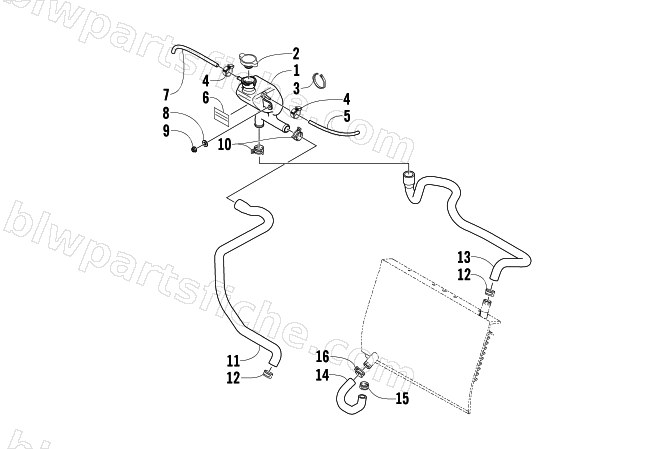

COOLING ASSEMBLY
2003 440 SNO PRO L/C
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3606-349 | TANK,COOLANT-04 | 1 | $112.95 | |
| 2 | 0606-268 | CAP,MINI RADIATOR-13LBS | 1 | $24.77 | |
| 3 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 4 | 0623-063 | CLAMP, HOSE (SNP02) | 1 | $4.40 | |
| 5 | 0610-538 | HOSE,VENT- 25' (1054-152) | 1 | $117.95 | |
| 6 | 2611-758 | DECAL,FILL LEVEL-COOLANT TANK | 1 | $11.95 | |
| 7 | 0610-015 | HOSE,GAS 1/4 X100' | 1 | $231.59 | |
| 7 | 0610-016 | HOSE,GAS 1/4 X25' | 1 | $117.95 | |
| 8 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 9 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 10 | 1623-092 | CLAMP,BAND-SAE #16 | 1 | $5.09 | |
| 11 | 0610-526 | HOSE,COOLANT-TANK/THERMOSTAT | 1 | $99.95 | |
| 12 | 1623-049 | CLAMP,HOSE-24/8 SS | 1 | $3.57 | |
| 13 | 0610-531 | HOSE,COOLANT-FRT EXCH/TANK | 1 | $57.95 | |
| 14 | 0610-527 | HOSE, COOLANT - ENG/FRT EXCH | 1 | $26.95 | |
| 15 | 1623-048 | CLAMP,HOSE-23/8 SS | 1 | $4.40 | |
| 16 | 0623-941 | CLAMP,HOSE(NORMA 24) COOLING | 1 | $5.95 |
