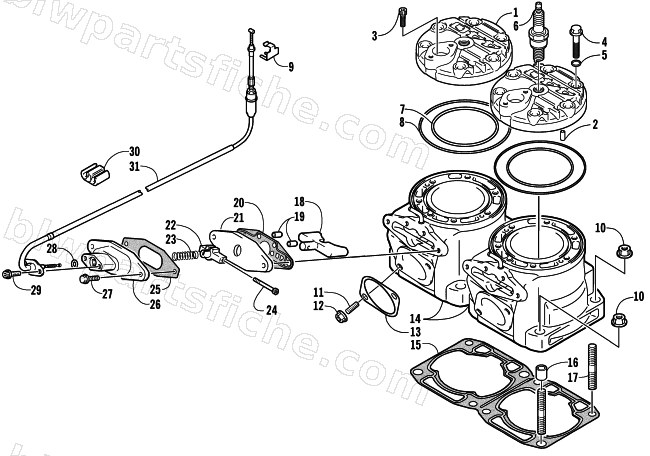

2003 Arctic Cat 440 SNO PRO L/C — CYLINDER AND HEAD ASSEMBLY
2003 440 SNO PRO L/C
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3006-622 | HEAD COMP,CYL-2003 L/C SNO PRO | 1 | $393.95 | |
| 2 | 3006-321 | PIN,5X10 '02 440 SNO PRO | 1 | $10.95 | |
| 3 | 3004-475 | BOLT,6X25 (R/B 3007-509) | 1 | $2.95 | |
| 4 | 3007-460 | BOLT | 1 | $3.85 | |
| 5 | 3003-227 | O-RING, CYL HD BLT | 1 | $3.85 | |
| 6 | 0217-709 | SPARK PLUG, BR9EYA | 1 | $5.09 | |
| 7 | 3003-224 | O RING,HEAD-INNER | 1 | $13.73 | |
| 8 | 3003-226 | O RING,HEAD-OUTER | 1 | $13.73 | |
| 9 | 3005-747 | HOLDER, EXHAUST VALVE CABLE | 1 | $15.11 | |
| 10 | 3007-391 | NUT,INTER COOLER BRKT | 1 | $3.16 | |
| 11 | 3007-415 | STUD BOLT | 1 | $4.95 | |
| 12 | 3007-390 | NUT,INTER COOLER | 1 | $3.16 | |
| 13 | 3003-503 | GASKET,EXHAUST NON-ASBESTOS | 1 | $19.25 | |
| 14 | 3006-327 | CYLINDER '02 440 SNO PRO | 1 | $1,197.95 | |
| 15 | 3006-423 | GASKET,CYLINDER | 1 | $34.95 | |
| 16 | 3004-975 | PIN, CYLINDER KNOCK(ALIGMENT) | 1 | $2.61 | |
| 17 | 3005-596 | STUD,BOLT | 1 | $17.87 | |
| 18 | 3006-623 | VALVE,EXHAUST | 1 | $397.95 | |
| 20 | 3006-329 | GASKET, EXHAUST VALVE COVER | 1 | $12.35 | |
| 21 | 3006-495 | PLATE,EXHAUST VALVE | 1 | $58.95 | |
| 22 | 3005-860 | STOPPER, EXHAUST VALVE | 1 | $65.95 | |
| 23 | 3006-484 | SPRING | 1 | $6.34 | |
| 24 | 3005-983 | PIN, EXHAUST VALVE 02 500 L/C | 1 | $19.25 | |
| 25 | 3006-436 | GASKET,EXHAUST VALVE COVER | 1 | $5.51 | |
| 26 | 3006-425 | COVER,EXHAUST VALVE | 1 | $84.95 | |
| 27 | 3007-395 | BOLT | 1 | $3.44 | |
| 28 | 3005-226 | O RING, WATER DRAIN | 1 | $5.09 | |
| 29 | 3007-433 | BOLT | 1 | $3.16 | |
| 30 | 3005-808 | CLAMP | 1 | $6.95 | |
| 31 | 3006-736 | CABLE COMP,EXHAUST VALVE | 1 | $117.95 |
