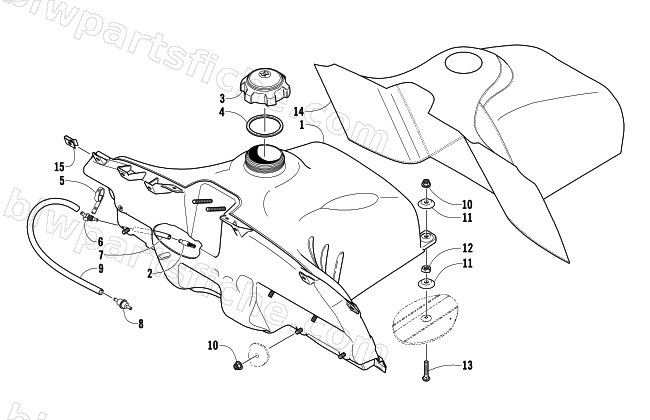

2003 Arctic Cat 440 SNO PRO L/C — GAS TANK ASSEMBLY
2003 440 SNO PRO L/C
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 0510-358 | STRAINER,GAS TANK | 1 | $6.83 | |
| 3 | 1670-447 | CAP,VENTED-GAS | 1 | $53.95 | |
| 5 | 0670-289 | TAPE, TEFLON-ROLL | 1 | $6.34 | |
| 6 | 1670-321 | OUTLET, GAS TANK-5/16-45 DEG FITTING | 1 | $5.51 | |
| 7 | 0610-017 | HOSE,GAS 3/16 X100' | 1 | $232.95 | |
| 7 | 0610-008 | HOSE, GAS LINE-3/16X25' | 1 | $93.95 | |
| 8 | 2670-346 | FILTER,FUEL-INLINE-5/16 | 1 | $24.77 | |
| 9 | 0610-015 | HOSE,GAS 1/4 X100' | 1 | $231.59 | |
| 9 | 0610-016 | HOSE,GAS 1/4 X25' | 1 | $117.95 | |
| 10 | 1623-066 | NUT,FLANGE-1/4-20 TOPLOCK-GD 5 Z&Y | 1 | $0.95 | |
| 11 | 0123-765 | WASHER,CUP .265X1.06 12 GA | 1 | $5.78 | |
| 12 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 13 | 8011-041 | BOLT,CRG 1/4-20X.875 GR1 Z&Y | 1 | $0.45 | |
| 14 | 2706-289 | COVER,GAS TANK-4" NECK | 1 | $73.95 | |
| 15 | 0623-427 | NUT,U-1/4X20 | 1 | $6.83 |
