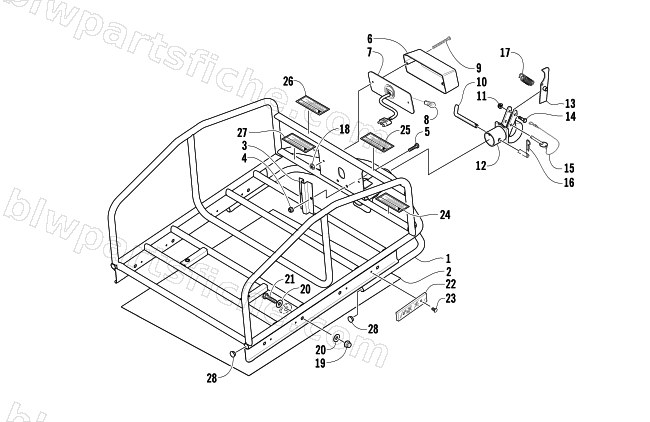

2003 Arctic Cat BEARCAT WIDE TRACK — RACK, HITCH, AND TAILLIGHT ASSEMBLIES
2003 BEARCAT WIDE TRACK
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2706-076 | RACK, BCWT-PAINTED | 1 | $296.95 | |
| 2 | 2606-749 | MAT, RACK-RUBBER | 1 | $90.95 | |
| 3 | 2706-172 | GUARD,SIDE-TAILLIGHT-PTD BLK | 1 | $14.95 | |
| 4 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 5 | 8017-577 | SCREW,MACH-TSTRH 1/4-20 X 1/2 GR2 Z&Y | 1 | $1.23 | |
| 6 | 0609-229 | LENS,TAILLIGHT | 1 | $32.95 | |
| 7 | 0609-230 | HOUSING,TAILLIGHT-W/SOCKET | 1 | $65.95 | |
| 8 | 0109-460 | BULB,STOP/TAILLAMP | 1 | $2.06 | |
| 9 | 0623-303 | SCREW,PAN HEAD #10-32X2.00 | 1 | $0.65 | |
| 10 | 2606-933 | RECEIVER-PINTLE HITCH | 1 | $13.95 | |
| 11 | 1623-066 | NUT,FLANGE-1/4-20 TOPLOCK-GD 5 Z&Y | 1 | $0.95 | |
| 12 | 2706-853 | HITCH, PINTLE-PLATED- 05 HD | 1 | $218.95 | |
| 13 | 2706-503 | LATCH, PINTLE HITCH-PLATED Z&Y | 1 | $61.95 | |
| 14 | 8002-045 | SCREW, CAP-HH 1/4-20 X 1.50 G5 Z&Y | 1 | $0.95 | |
| 15 | 3606-903 | PIN, LOCK-PINTLE HITCH-LG HOOK | 1 | $17.95 | |
| 16 | 0605-283 | HAIRPIN,COTTER | 1 | $1.23 | |
| 17 | 0602-651 | SPRING,RETURN-ACTUATOR ARM | 1 | $5.65 | |
| 18 | 0123-709 | NUT,HEX 10-32 W/LOCKWASHER | 1 | $0.40 | |
| 19 | 0623-426 | NUT,NY-LOCK 3/8-16-NYL CAP BLACK | 1 | $1.64 | |
| 20 | 8050-277 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.26 | |
| 21 | 8002-220 | SCREW,CAP-HH 3/8-16 X.75 G5 Z&Y | 1 | $0.95 | |
| 22 | 0606-029 | REFLECTOR, RED | 1 | $13.73 | |
| 23 | 0623-269 | CLIP, CHRISTMAS TREE | 1 | $1.23 | |
| 24 | 1611-567 | DECAL,WARNING-TOWING(FRENCH) | 1 | $13.95 | |
| 25 | 1611-569 | DECAL,WARNING-MAX PAYLOAD WT(FRENCH) | 1 | $13.73 | |
| 26 | 1611-568 | DECAL,WARNING-MAX PAYLOAD WT | 1 | $13.73 | |
| 27 | 1611-566 | DECAL,WARNING-TOWING(ENGLISH) | 1 | $13.73 | |
| 28 | 0606-654 | PLUG,HOLE-5/8 | 1 | $0.65 |
