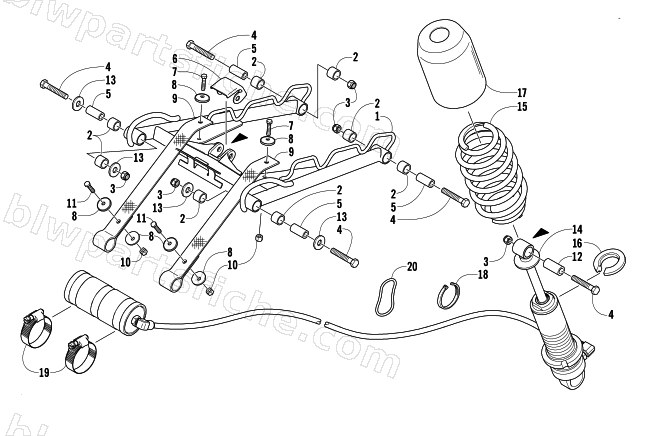

2003 Arctic Cat FIRECAT 500 SNO PRO — REAR SUSPENSION FRONT ARM ASSEMBLY
2003 FIRECAT 500 SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0704-984 | ARM,FRONT-FABR(03 PRO) | 1 | $322.95 | |
| 2 | 0604-889 | BUSHING,FRONT ARM | 1 | $3.71 | |
| 3 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 4 | 8002-228 | SCREW,CAP-HH 3/8-16 X2.25 G5 Z&Y | 1 | $3.44 | |
| 5 | 0104-629 | SPACER,FRONT ARM-PIVOT | 1 | $19.25 | |
| 6 | 2604-112 | GUIDE,CENTER-FRT ARM-PTD BLK | 1 | $27.95 | |
| 7 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 8 | 0623-875 | WASHER, BACKING-7MM ID X 11/8OD | 1 | $1.78 | |
| 9 | 2604-140 | STRAP,LIMITER-1.250"X16.15" | 1 | $19.25 | |
| 10 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 11 | 8002-043 | SCREW,CAP-HH 1/4-20 X1.125 G5 Z&Y | 1 | $0.68 | |
| 12 | 1603-531 | AXLE,SHOCK-FRT ARM | 1 | $4.26 | |
| 13 | 0623-044 | WSHR,FLAT HARD .375 X.875 | 1 | $4.68 | |
| 14 | 0704-930 | SHOCK , FRT ARM-FOX | 1 | $1,185.95 | |
| 16 | 1603-890 | RETAINER,SPRING | 1 | $13.73 | |
| 17 | 0604-790 | COVER,SUSPENSION SPRING (SHORT) | 1 | $24.77 | |
| 18 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 19 | 0214-025 | CLAMP,HOSE #32 | 1 | $4.40 | |
| 20 | 0616-032 | O-RING-WINDSHIELD (1 I.D.) | 1 | $1.78 |
