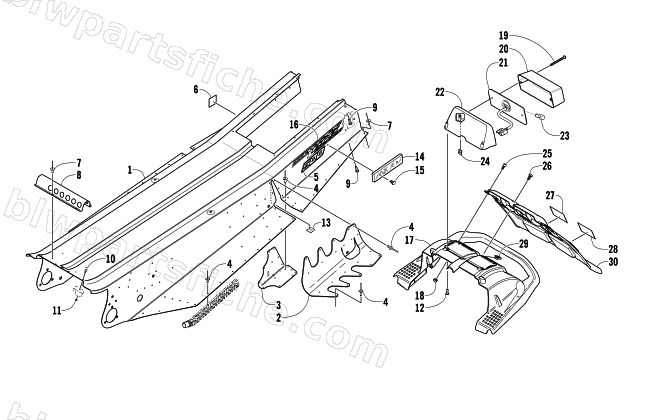

2003 Arctic Cat FIRECAT 500 SNO PRO — TUNNEL, REAR BUMPER, AND TAILLIGHT ASSEMBLY
2003 FIRECAT 500 SNO PRO
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1718-364 | TUNNEL,S/P ASSY | 1 | $720.95 | |
| 2 | 2606-616 | BRKT,REAR SUSP MTG - RH | 1 | $169.95 | |
| 2 | 2606-617 | BRKT, REAR SUSP MTG - LH | 1 | $168.95 | |
| 3 | 2706-136 | PLATE,BACKING-REAR SUSP-RH-PTD BLK | 1 | $17.87 | |
| 3 | 2706-137 | PLATE,BACKING-REAR SUSP-LH-PTD BLK | 1 | $17.87 | |
| 4 | 0623-072 | RIVET,SOLID ALUM-156 X370 | 1 | $0.15 | |
| 4 | 0623-806 | RIVET, SOLID-.156 X.437-ALUM | 1 | $0.26 | |
| 4 | 8060-506 | RIVET,BLIND-DH SS54 BLK | 1 | $0.26 | |
| 5 | 4611-870 | DECAL,TUNNEL-"500" | 1 | $26.95 | |
| 6 | 0411-053 | DECAL,TUBE-CE | 1 | $100.95 | |
| 7 | 8060-484 | RIVET, BLIND-DH SS53 ZINC | 1 | $0.40 | |
| 8 | 2606-938 | PROTECTOR,WIRING-DRIVEN SHAFT | 1 | $13.95 | |
| 9 | 1623-022 | SCREW,48-2 TXSPNH 1/4-10X.625 Z&Y | 1 | $6.47 | |
| 10 | 8017-399 | SCREW,MACH-TSTRH 10-24X5/8 GR2 Z&Y | 1 | $1.37 | |
| 11 | 8040-246 | NUT,HEX LOCK-NYL 10-24 Z&Y | 1 | $0.26 | |
| 12 | 1623-109 | SCREW,PLASTITE-TSFH 1/4-10X.500 Z&Y | 1 | $0.75 | |
| 13 | 2606-007 | FOIL, PROTECTIVE | 1 | $1.78 | |
| 14 | 0606-029 | REFLECTOR, RED | 1 | $13.73 | |
| 15 | 0623-269 | CLIP, CHRISTMAS TREE | 1 | $1.23 | |
| 16 | 4611-899 | DECAL,TUNNEL-"SNO PRO PACKAGE" | 1 | $38.95 | |
| 17 | 3606-292 | BUMPER, RR-PLASTIC-BLACK | 1 | $275.95 | |
| 18 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 19 | 0623-204 | SCREW, MACH - PHPNH, #10-32X2.5 BLK | 1 | $0.95 | |
| 20 | 0609-229 | LENS,TAILLIGHT | 1 | $32.95 | |
| 21 | 0609-230 | HOUSING,TAILLIGHT-W/SOCKET | 1 | $65.95 | |
| 22 | 0609-622 | HOUSING,TAILLIGHT-BLACK | 1 | $24.95 | |
| 23 | 0109-460 | BULB,STOP/TAILLAMP | 1 | $2.06 | |
| 24 | 1623-023 | NUT,SPEED-#10-32 U TYPE | 1 | $1.50 | |
| 25 | 8017-579 | SCREW,MACH-TSTRH 1/4-20X.625 G2 Z&Y | 1 | $6.83 | |
| 26 | 8017-577 | SCREW,MACH-TSTRH 1/4-20 X 1/2 GR2 Z&Y | 1 | $1.23 | |
| 27 | 1611-567 | DECAL,WARNING-TOWING(FRENCH) | 1 | $13.95 | |
| 28 | 1611-566 | DECAL,WARNING-TOWING(ENGLISH) | 1 | $13.73 | |
| 29 | 0623-363 | NUT SPEED 1/4-20 U-TYPE 1 BLK | 1 | $1.50 | |
| 30 | 2606-831 | R/B 3606-251 | 1 | $76.95 |
