2003 Arctic Cat FIRECAT 500 — AIR SILENCER ASSEMBLY
2003 FIRECAT 500
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.

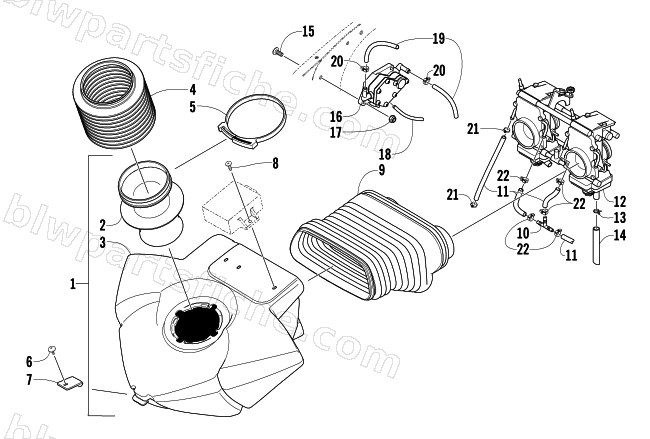

| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0770-611 | SILENCER,AIR-ASSY (RB 0770-720) | 1 | $125.95 | |
| 2 | 1670-473 | INLET,AIR SILENCER | 1 | $30.95 | |
| 3 | 1670-774 | SILENCER,AIR-ASSY | 1 | $101.95 | |
| 4 | 1670-514 | TUBE, INLET HOSE | 1 | $47.95 | |
| 5 | 1623-132 | CLAMP,SNP100 | 1 | $12.35 | |
| 6 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 7 | 3606-146 | HOLDDOWN,AIR SILENCER | 1 | $12.35 | |
| 8 | 0623-785 | SCREW,SELF TAP-HWH #10-16 X 1 TYPE B Z&Y | 1 | $0.68 | |
| 9 | 1670-490 | BOOT ASSY 500 Firecat | 1 | $275.95 | |
| 10 | 0670-235 | FITTING,TEE-5/16 | 1 | $4.54 | |
| 11 | 0610-513 | HOSE,GASLINE-25' | 1 | $89.95 | |
| 12 | 1670-496 | CARB,TM38-B343 | 1 | $1,457.95 | |
| 13 | 0623-652 | CLAMP,HOSE-WIRE(CP10101) | 1 | $1.78 | |
| 14 | 0610-442 | HOSE, DRAIN (1.5") | 1 | $4.40 | |
| 15 | 8017-581 | SCREW,MACH-TSTRH 1/4-20 X 7/8 GR2 Z&Y | 1 | $5.45 | |
| 16 | 1670-416 | PUMP,FUEL-500 CARB | 1 | $56.95 | |
| 17 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 18 | 0610-007 | HOSE, IMPULSE 3/16 25' | 1 | $102.95 | |
| 19 | 0610-015 | HOSE,GAS 1/4 X100' | 1 | $231.59 | |
| 19 | 0610-016 | HOSE,GAS 1/4 X25' | 1 | $117.95 | |
| 20 | 0124-045 | CLAMP,HOSE - .402/.449 DIA (SNP04) | 1 | $2.61 | |
| 21 | 0623-373 | CLAMP,HOSE #4 {6202} | 1 | $2.88 | |
| 22 | 0623-646 | CLAMP,HOSE (SNP08) .513-.586 | 1 | $4.95 |
